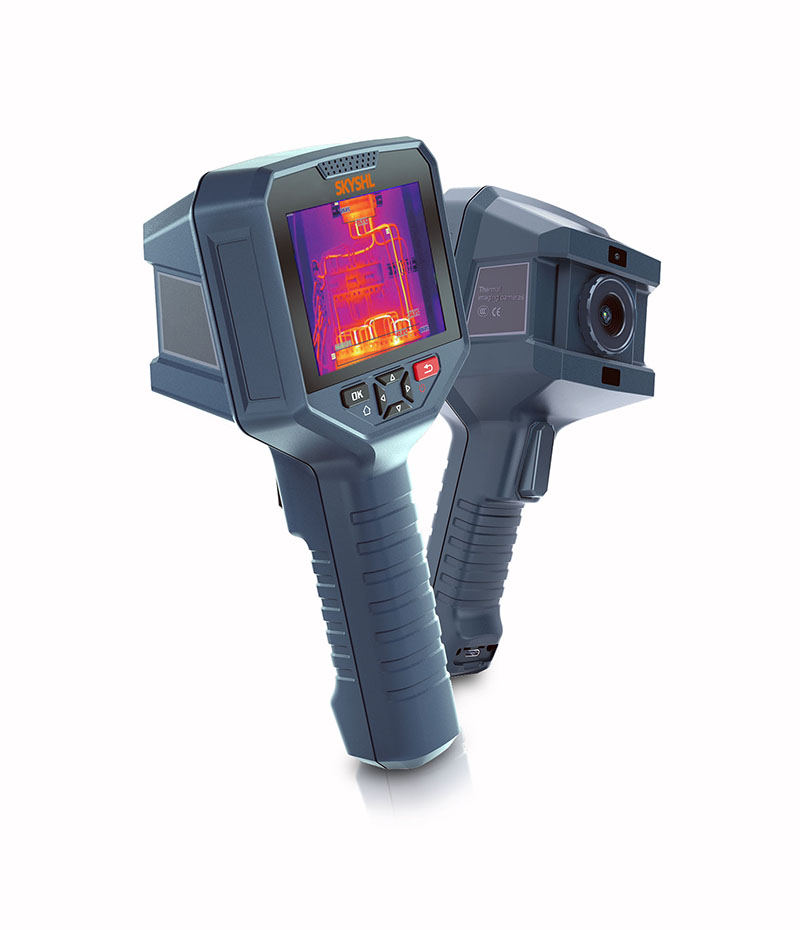

SS112A Infrared Thermal Imaging
Original price was: $499.00.$355.00Current price is: $355.00.
SS112A infrared thermal imaging handheld device is a high-precision thermal imaging handheld device. The display method of infrared thermal imaging and visible light can be used to capture the image of each pixel of the target object temperature,and by combining visible light, the state of the object can be photographed more clearly.
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 9 × 4 × 3.6 in |
| Model |
SS112A |
| Temperature Mode |
Center point,high and low temperature tracking |
| Infrared Spectral Bandwidth |
8~14μm |
| Frame rate |
25Hz |
| NETD |
＜70mK@25℃ |
| Screen |
3.5 inches TFT LCD Display （Resolution 256×192) |
| Power Supply |
3.4V 2600mAh lithium battery |
| Dimensions |
Product: 23x 10 x 9cm / 0.7KG |
| Send From |
China(Cross-border/FOB Shenzhen) ,USA(Local Warehouse/DDP) ,Mexico(Local Warehouse/DDP) ,German(Local Warehouse/DDP) ,France(Local Warehouse/DDP) ,UK(Local Warehouse/DDP) |
SS112A INFRARED THERMAL IMAGING CAMERA HIGHLIGHTS
🏅HIGH-RESOLUTION INFRARED THERMAL IMAGING
The SKYSHL SS112A Handheld Infrared Thermal Imaging Camera features a 256×192 resolution for detailed thermal analysis. With an 8–14μm spectral bandwidth and NETD <70mK, it captures precise heat signatures, making it ideal for industrial inspection, HVAC diagnostics, and electrical maintenance.
🏅WIDE TEMPERATURE MEASUREMENT RANGE & HIGH ACCURACY
The SS112A handheld IR thermal camera supports a temperature measurement range of -10°C to 450°C, with ±2°C or ±2% accuracy. It offers center point, high/low temperature tracking, and regional temperature detection, ensuring reliable heat detection in various environments.
🏅VERSATILE IMAGE DISPLAY & MULTIPLE COLOR PALETTES
The SS112A portable infrared camera supports edge fusion, superimposed fusion, picture-in-picture, and single infrared/visible light modes. With eight color palettes, including Iron Red, Rainbow, and Black Hot, users can optimize thermal contrast for different scenarios.
🏅3.5" LCD DISPLAY & VISIBLE LIGHT INTEGRATION
Equipped with a 3.5-inch TFT LCD screen, the SS112A thermal imager enhances visibility by combining infrared and visible light imaging. Its 1MP visible light camera and 720P resolution provide clear, detailed images for effective analysis and reporting.
🏅RUGGED DESIGN WITH IP54 & 2M DROP PROTECTION
Designed for durability, the SS112A thermal vision camera features IP54-rated protection against dust and water, along with 2-meter drop resistance. It's built to withstand harsh environments, making it a reliable tool for fieldwork and industrial applications.
🏅LONG BATTERY LIFE & PC CONNECTIVITY
The SS112A IR thermal camera comes with a 2600mAh rechargeable lithium battery, supporting extended operation. It includes USB Type-C for fast charging and data transfer, 8GB built-in memory, and PC analysis software, ensuring seamless image storage and reporting.
8–14μm spectral bandwidth
HD Industrial thermal imager
The SS112A HD Industrial Thermal Imager is a high-precision infrared thermal imaging camera designed for professional use. Featuring a 256×192 resolution sensor and an 8–14μm spectral bandwidth, it provides clear and detailed thermal vision for industrial inspections, electrical maintenance, and HVAC diagnostics. The 3.5-inch TFT LCD display ensures real-time heat detection, while multiple image display modes, including edge fusion and picture-in-picture, enhance clarity. Its wide temperature range (-10°C to 450°C), adjustable emissivity, and eight color palettes optimize performance across different environments. Built with IP54-rated protection and 2-meter drop resistance, this portable infrared camera is durable for field use. The 2600mAh rechargeable battery, USB Type-C connectivity, and PC analysis software make it an efficient tool for professionals seeking reliable thermal imaging solutions.
SS112A INFRARED THERMAL IMAGING CAMERA PARAMETERS
| ✨Model :SS112A. |
| ✨Resolution: 3.5 inches (256x192). |
| ✨Infrared spectral bandwidth:8~14μm |
| ✨Frame rate: 25Hz |
| ✨NETD: ＜70mK@25℃ |
| ✨FOV: 56°x42° |
| ✨Emissivity: 0.1~0.99 |
| ✨Temperature measurement range: Low temperature: -10~150℃, high temperature: 120~450℃ |
| ✨Measurement accuracy: +/-2℃ or +/-2% of reading |
| ✨Image modes: Edge fusion, Superimposed fusion, Picture-in-Picture, Single Infrared, Single Visible Light |
| ✨Color palettes: Iron Red, Rainbow, Red hot, Black hot, white hot, High contrast,green hot, lava pattern |
| ✨Temperature measurement: Support the highest point, the lowest point, the center point temperature measurement in the whole screen and the regional temperature measurement. |
| ✨Visible light camera: one million pixels |
| ✨Visible field angle: H=83° V=55° |
| ✨Resolution: 720P |
| ✨Language: Chinese (Simplified), Chinese (Traditional)，English, French, German, Spanish, Dutch, Japanese, Korean |
| ✨Interface: USB Type-C (Supports charging and data transfer) |
| ✨Battery: 3.7V 2600mAh lithium battery |
| ✨Image / video format: JPEG/Mp4 |
| ✨Image / video format: JPEG/Mp4 |
| ✨Automatic shutdown function: Yes |
| ✨Storage temperature: -20℃~65℃ |
| ✨Operating temperature: -10℃~60℃ |
| ✨Drop proof: 2m |
| ✨Dimensions/Weight:23x 10 x 9cm / 0.7KG |
High-definition pixel display function, clearly visible under strong light
3.5 inches Full Viewing Angle TFT Display
The SS112A Infrared Thermal Imaging Camera features a 3.5-inch full viewing angle TFT display, ensuring high-definition visuals with precise thermal imaging details. The screen delivers clear, vibrant images, making it easy to analyze heat patterns and temperature variations in different environments. Thanks to its high-definition pixel display function, every detail is visible, even in strong sunlight, enabling users to operate the handheld thermal camera efficiently outdoors. Whether conducting industrial inspections, electrical diagnostics, or HVAC maintenance, the portable infrared camera provides sharp, real-time imaging for accurate assessments. The wide-angle display also enhances user experience by reducing glare and improving visibility, making the thermal imager an ideal tool for professionals who require reliability and precision.
SS112A INFRARED THERMAL IMAGING CAMERA KEY FEATURES
| ✨3.5" TFT LCD Display. |
| ✨Temperature measurement mode:center point,high and low temperature tracking. |
| ✨Temperature testing range: -10°C ~ 450°C. |
| ✨256x192 pixel resolution, 56°x 42° Field of View. |
| ✨Eight color palettes,optimized for different scenes. |
| ✨Multiple image display mode to set and real time image display. |
| ✨PC analysis software. |
| ✨Adjustable emissivity. |
| ✨3.7v 2600mAh rechargeable lithium battery |
| ✨Double prevention design: IP54 / two meter fall prevention. |

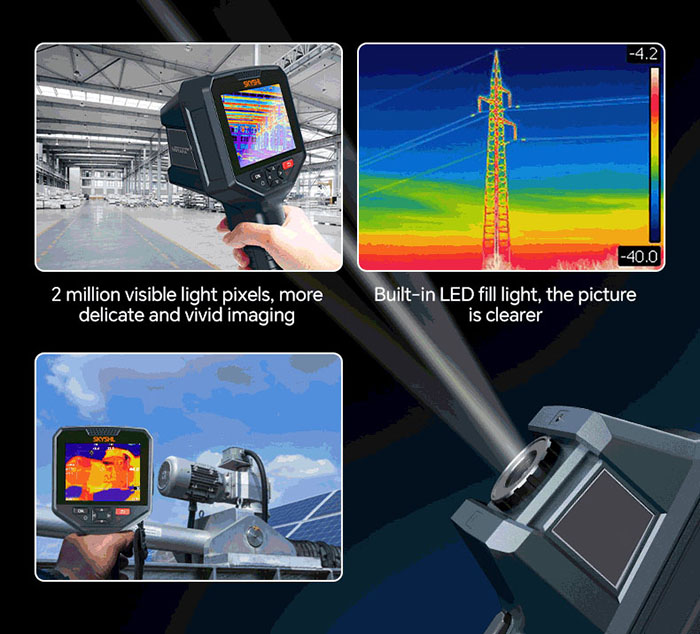

Built-in LED Fill light
2 Million Visible Light Pixels
The SKYSHL SS112A Infrared Thermal Imaging Camera is equipped with a 2 million-pixel visible light camera, ensuring high-definition image capture alongside thermal imaging. This feature allows for detailed visual analysis by combining thermal and visible light images for clearer inspection results. Additionally, the built-in LED fill light enhances visibility in low-light environments, making it an ideal handheld thermal camera for nighttime or dimly lit areas. Whether used for electrical inspections, HVAC maintenance, or industrial diagnostics, the portable infrared camera provides sharp, detailed images to improve accuracy and efficiency in professional applications.

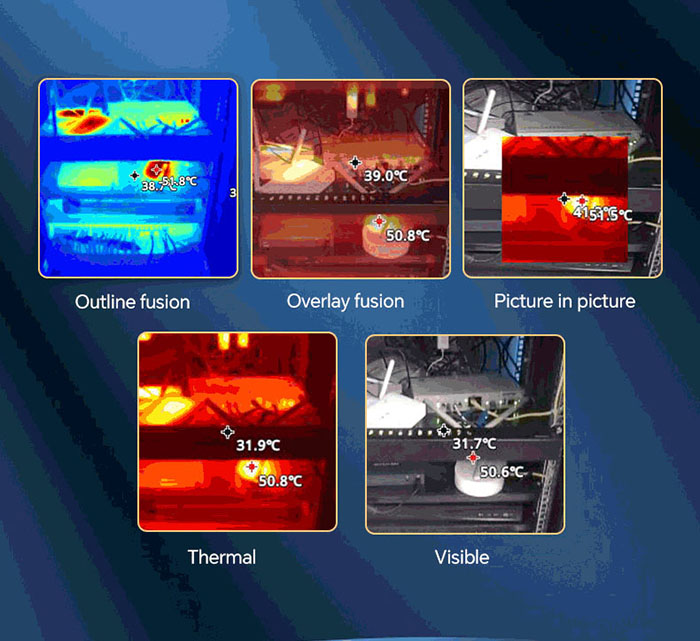

Support Outline Fusion, Overlay fusion, Picture in picture, Thermal, Visible
Fusion Function, Smarter and Clearer
The SKYSHL SS112A Infrared Thermal Imaging Camera features an advanced fusion function, allowing for more intelligent and detailed thermal imaging analysis. It supports multiple imaging modes, including outline fusion, overlay fusion, picture-in-picture, thermal-only, and visible-only views, providing enhanced clarity and adaptability for various inspection needs. The handheld thermal camera seamlessly combines infrared and visible light images, making it easier to detect temperature anomalies while maintaining the context of the surrounding environment. This portable infrared camera is ideal for electrical maintenance, building diagnostics, and industrial inspections, ensuring precise heat detection with greater visual accuracy. With high-resolution imaging and real-time fusion technology, the IR thermal camera enhances efficiency, making inspections faster and more intuitive.
SS112A INFRARED THERMAL IMAGING CAMERA PARAMETERS
| ✨Model :SS112A. |
| ✨Resolution: 3.5 inches (256x192). |
| ✨Infrared spectral bandwidth:8~14μm |
| ✨Frame rate: 25Hz |
| ✨NETD: ＜70mK@25℃ |
| ✨FOV: 56°x42° |
| ✨Emissivity: 0.1~0.99 |
| ✨Temperature measurement range: Low temperature: -10~150℃, high temperature: 120~450℃ |
| ✨Measurement accuracy: +/-2℃ or +/-2% of reading |
| ✨Image modes: Edge fusion, Superimposed fusion, Picture-in-Picture, Single Infrared, Single Visible Light |
| ✨Color palettes: Iron Red, Rainbow, Red hot, Black hot, white hot, High contrast,green hot, lava pattern |
| ✨Temperature measurement: Support the highest point, the lowest point, the center point temperature measurement in the whole screen and the regional temperature measurement. |
| ✨Visible light camera: one million pixels |
| ✨Visible field angle: H=83° V=55° |
| ✨Resolution: 720P |
| ✨Language: Chinese (Simplified), Chinese (Traditional)，English, French, German, Spanish, Dutch, Japanese, Korean |
| ✨Interface: USB Type-C (Supports charging and data transfer) |
| ✨Battery: 3.7V 2600mAh lithium battery |
| ✨Image / video format: JPEG/Mp4 |
| ✨Image / video format: JPEG/Mp4 |
| ✨Automatic shutdown function: Yes |
| ✨Storage temperature: -20℃~65℃ |
| ✨Operating temperature: -10℃~60℃ |
| ✨Drop proof: 2m |
| ✨Dimensions/Weight:23x 10 x 9cm / 0.7KG |

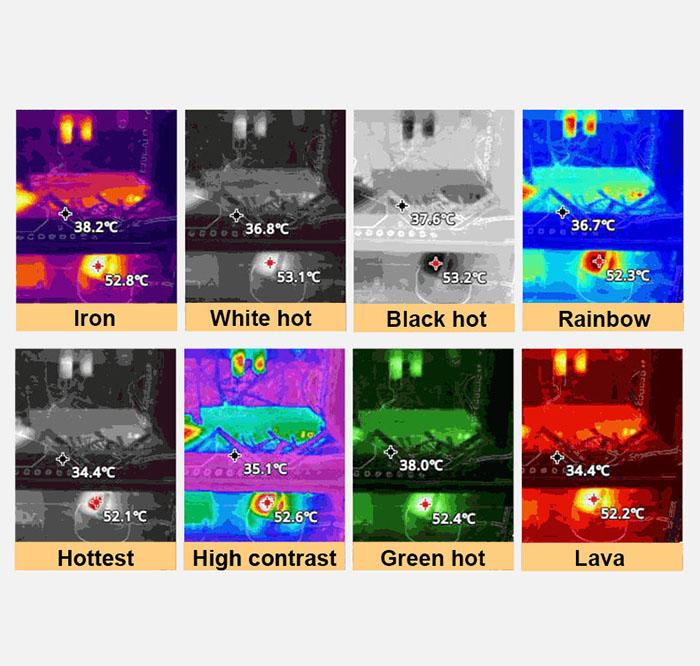

8 color palettes, different modes can be freely selected in different scenes
Multiple Imaging Modes
The SS112A Infrared Thermal Imaging Camera offers multiple imaging modes and eight color palettes, ensuring adaptability for diverse environments. Users can freely switch between Edge Fusion, Overlay Fusion, Picture-in-Picture, Single Infrared, and Single Visible Light modes to achieve the best results in different applications. The handheld thermal camera supports Iron Red, Rainbow, Red Hot, Black Hot, White Hot, High Contrast, Green Hot, and Lava Pattern palettes, allowing users to optimize thermal contrast based on specific inspection needs. Whether used for electrical diagnostics, mechanical inspections, or building surveys, the portable infrared camera enhances heat detection accuracy with clear, high-resolution thermal imaging. By selecting the most suitable color palette and imaging mode, professionals can effectively analyze temperature variations, detect anomalies, and improve operational efficiency, making the thermal imager a powerful tool for precision diagnostics.

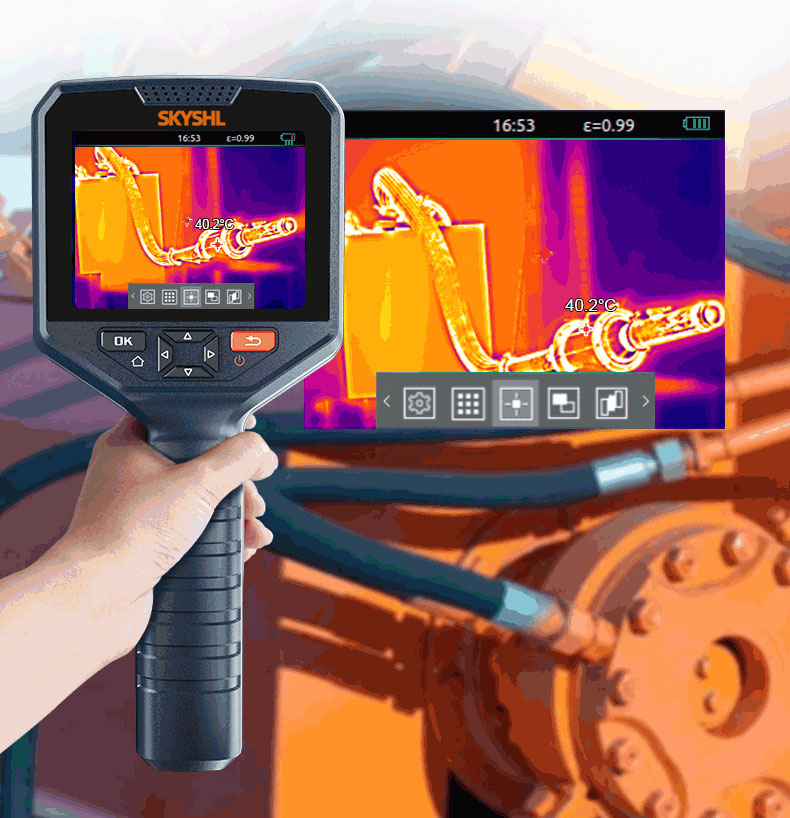

Automatically trace the hot spot, Cold spot, Center spot
Hot and Cold Temperature Tracking
The SS112A Infrared Thermal Imaging Camera features automatic hot and cold temperature tracking, enabling users to precisely detect temperature variations. The handheld thermal camera can automatically trace hot spots, cold spots, and center spots, providing real-time temperature readings for accurate diagnostics. Additionally, users can select specific areas for temperature measurement and editing, allowing for detailed thermal analysis. This advanced feature enhances heat detection accuracy, making the thermal imager ideal for electrical inspections, HVAC troubleshooting, and industrial maintenance, ensuring efficient problem identification and resolution.

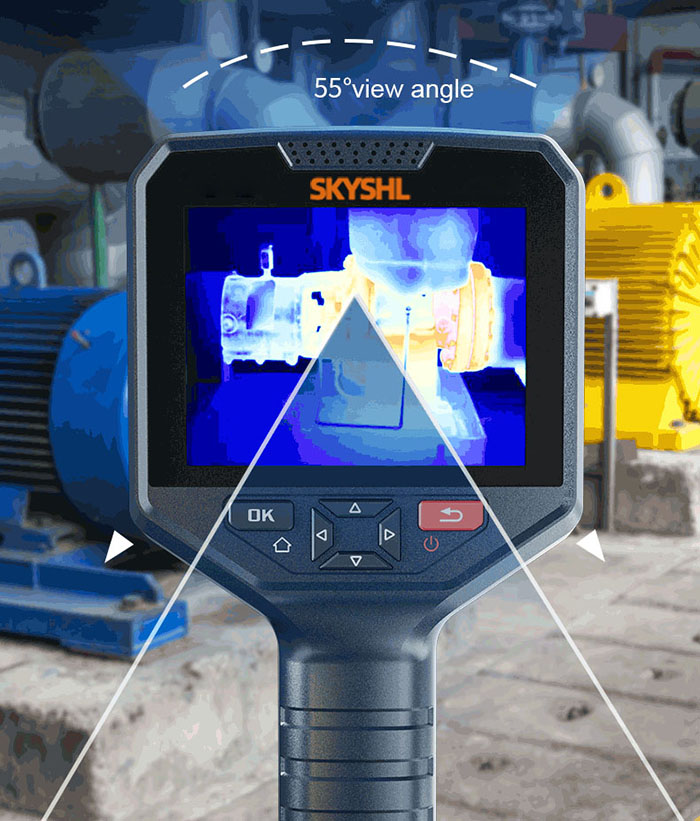

The Field of view at the same distance is larger and wider
55°x83° Wide-Angle Lens
The SS112A Infrared Thermal Imaging Camera is equipped with a 55°x83° wide-angle lens, providing a significantly larger and wider field of view at the same observation distance. This feature enables users to capture more details in a single frame, making it ideal for large-area inspections in industrial maintenance, electrical diagnostics, and HVAC system analysis. The expanded field of view enhances efficiency by reducing the need for repositioning while scanning complex environments. Whether used for thermal imaging surveys, mechanical fault detection, or building diagnostics, the handheld thermal camera ensures comprehensive heat detection with improved clarity and precision. Its high-resolution 256×192 infrared sensor and multiple display modes further optimize the imaging experience, allowing users to seamlessly switch between thermal and visible light views. With its wide-angle thermal vision and real-time temperature tracking, the IR thermal camera is a reliable tool for professionals seeking fast, accurate, and extensive thermal analysis in various applications.
The temperature measurement range is -20℃ ~ +400℃
High Temperature Alarm
The SS112A Infrared Thermal Imaging Camera features an advanced High Temperature Alarm function, making it an essential tool for professionals in environments where temperature thresholds are critical. With a temperature measurement range of -20°C to +400°C, this handheld thermal camera is capable of accurately detecting both low and high temperatures. The alarm system activates when the temperature on the screen exceeds or falls below the user-defined limits, ensuring that potential hazards, such as overheating equipment or frozen components, are promptly identified. This feature enhances the safety and efficiency of inspections by providing real-time alerts, enabling users to take immediate action. Whether you're inspecting electrical systems, mechanical machinery, or HVAC systems, the high-temperature alarm helps prevent costly damage or failure. Additionally, the adjustable temperature settings allow for tailored monitoring of specific areas, ensuring precise and reliable temperature tracking. With the SS112A’s ability to deliver clear thermal images and real-time warnings, it is the perfect IR thermal camera for professionals seeking effective temperature monitoring in a variety of applications.
SS112A INFRARED THERMAL IMAGING CAMERA KEY FEATURES
| ✨3.5" TFT LCD Display. |
| ✨Temperature measurement mode:center point,high and low temperature tracking. |
| ✨Temperature testing range: -10°C ~ 450°C. |
| ✨256x192 pixel resolution, 56°x 42° Field of View. |
| ✨Eight color palettes,optimized for different scenes. |
| ✨Multiple image display mode to set and real time image display. |
| ✨PC analysis software. |
| ✨Adjustable emissivity. |
| ✨3.7v 2600mAh rechargeable lithium battery |
| ✨Double prevention design: IP54 / two meter fall prevention. |
Why we developed SS411F fusion splicer
The Development Story of the SS112A Infrared Thermal Imaging Camera
At SKYSHL, we have always prioritized innovation and the creation of advanced, user-centric tools for various industries. Our journey into developing the SS112A Infrared Thermal Imaging Camera began with a clear goal: to design a compact, portable, and highly efficient thermal imaging device that could offer precision, reliability, and durability. The result is a powerful handheld thermal imaging camera that meets the demanding needs of professionals across industries such as electrical inspections, mechanical maintenance, building diagnostics, and more.
In the early stages, our engineering team identified key challenges faced by professionals when using traditional thermal cameras. The most significant issues were often related to image clarity, ease of use, and device durability in harsh work environments. We wanted to develop a device that not only provided precise temperature measurements but also delivered clear images in real-time, so users could easily identify problems like overheating electrical components, water leakage, or thermal irregularities in machinery.
One of the primary goals was to achieve a high resolution for accurate temperature readings. With this in mind, we developed the SS112A with a 256x192 pixel resolution and a temperature range of -10°C to 450°C. These specifications allowed users to capture even the smallest temperature differences, with the device able to detect cold spots, hot spots, and the center point temperature within the target area. With a 56°x42° field of view and a 3.5-inch TFT LCD display, the device offered an optimal balance between image quality and ease of use.
To enhance image clarity, we integrated a dual display method that combines infrared thermal imaging with visible light. This allows the SS112A to provide clearer visuals of objects' states while capturing the temperature profile of every pixel in the frame. The inclusion of eight customizable color palettes, such as Iron Red, Rainbow, and Black Hot, allows users to select the best visual mode for their specific environment and application.
Understanding the demanding environments where these devices would be used, we incorporated robust features to ensure the SS112A could withstand tough conditions. The camera is equipped with IP54 protection, making it dust and water-resistant, and it is designed to survive falls from up to two meters, giving it the durability required for fieldwork.
Moreover, we focused on user convenience and accessibility by implementing adjustable emissivity, multiple image display modes, and real-time image capture. Additionally, the device supports PC analysis software for further analysis, enhancing its utility for both fieldwork and office-based inspections.
We also aimed for long-lasting performance, which is why we chose a 2600mAh rechargeable lithium battery that provides extended operational time. The USB Type-C interface facilitates easy data transfer and charging, adding to the device's overall practicality.
Through careful research, design, and testing, the SS112A emerged as a versatile, reliable, and high-performance thermal imaging camera. From its high-resolution display to its durable design, it is a product we are proud of at SKYSHL. Our development team’s dedication to meeting the specific needs of professionals has resulted in a tool that is both cutting-edge and practical, making it an indispensable asset for any industry that requires precise temperature measurement and thermal analysis.
Learn more our company
Learn more our product
SS112A Questions and Answers
More FAQ
PRODUCT FAQ
The SS112A has a wide temperature measurement range of -10°C to 450°C. This range allows it to capture both low and high temperature variations, making it suitable for various industrial and maintenance applications.
The SS112A features a 256x192 pixel resolution for its thermal imaging display. This high resolution ensures clear and precise temperature readings, even in small areas or at a distance.
The SS112A is equipped with a 2600mAh rechargeable lithium battery. Depending on usage, the battery typically lasts several hours of continuous operation, providing ample time for inspections and measurements before needing to be recharged.
Yes, the SS112A is designed for rugged environments. It has an IP54 rating, meaning it is dustproof and water-resistant. Additionally, it can withstand drops from up to 2 meters without being damaged, making it perfect for fieldwork.
Yes, the SS112A is equipped with both infrared thermal imaging and a 1-megapixel visible light camera. This combination allows users to capture detailed thermal images and visible light pictures, helping to clearly identify and assess the condition of objects or systems being inspected.
Any use of the problem buyers can contact us (click the orange circle in the lower left corner or Click here to contact us), our professional engineers will answer your questions by email, operating instructions, remote video conferencing.
PURCHASE FAQ
We all can provide commercial invoice.
We support Paypal,credit card,TT(payment method for quantity more than 10 units) and other payment methods.
The product page will show the shipping country and stock quantity, buyers choose the shipping place as China when purchasing, it will be shipped from China factory, except for the shipment outside of China for the local warehouse shipment (please choose the buyer's country as the shipment place, when the receiving country and the shipping country are not the same, it will be used in the cross-border mode to be shipped from the factory in China).
No reason to return within 90 days, free replacement within 1 year, free repair within 3 years, lifetime limited warranty.
