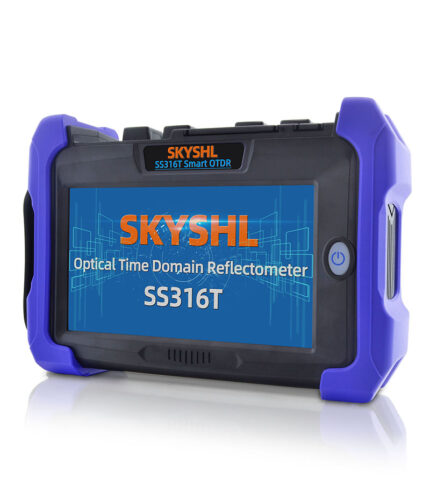

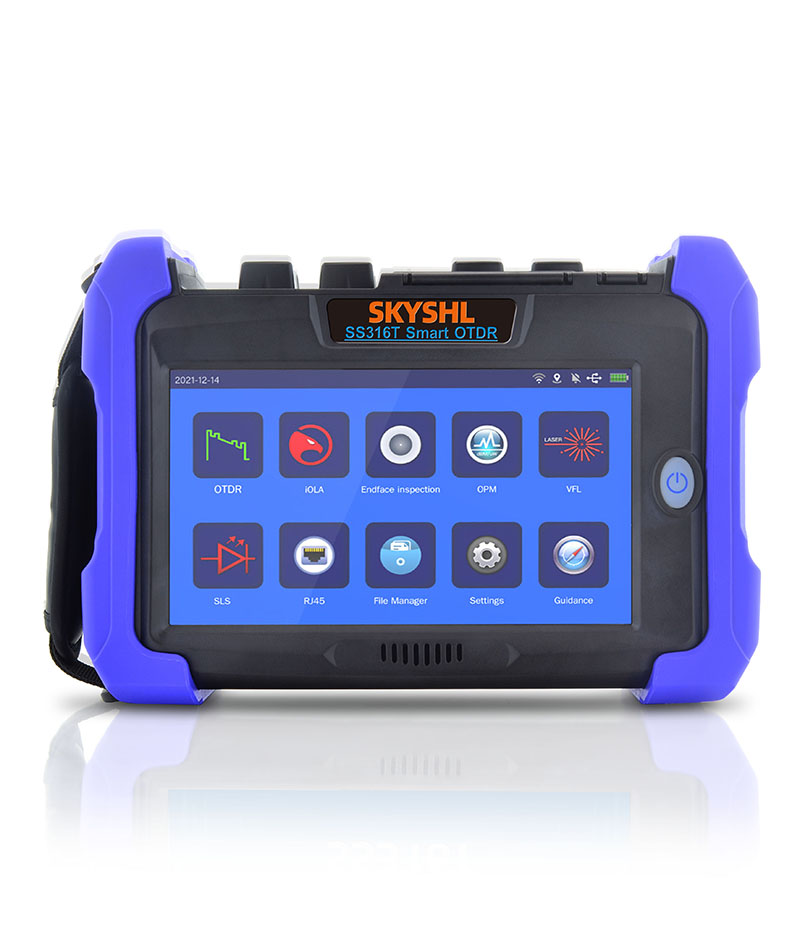

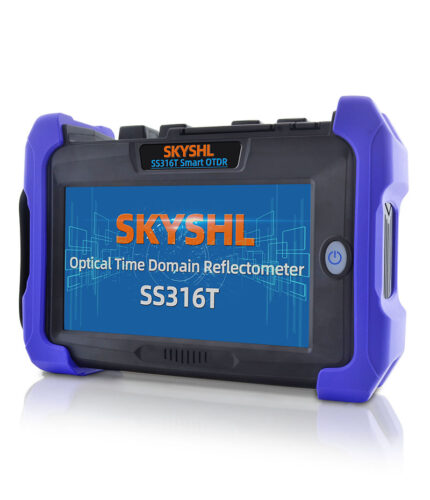

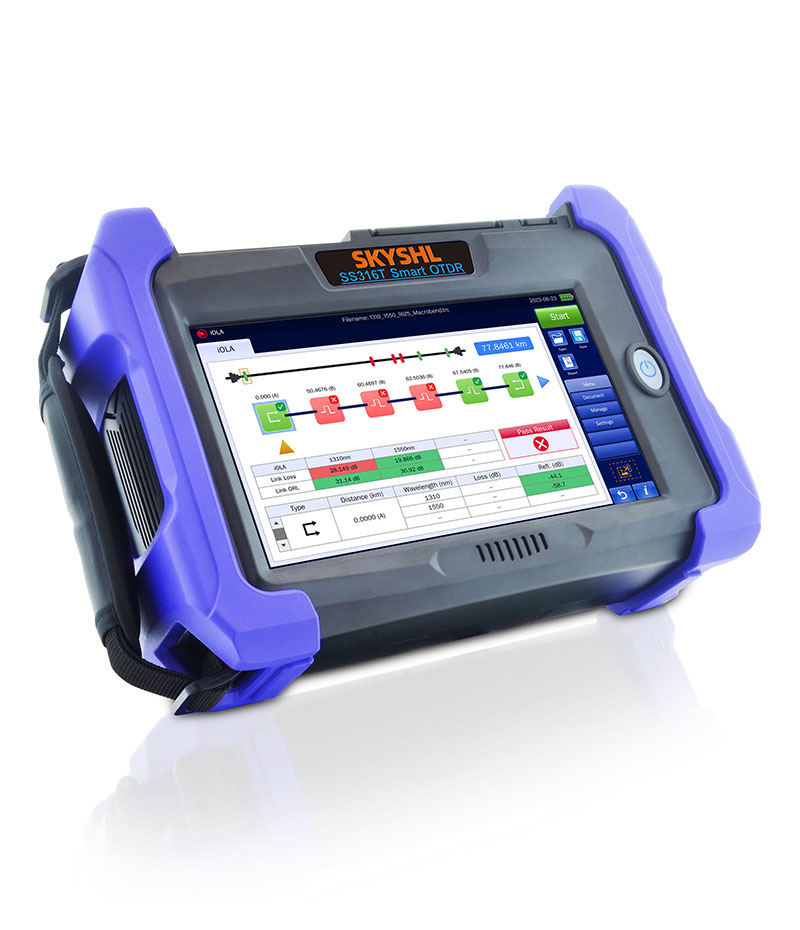

SS316T SM+MM OTDR Tester
$169.00 – $3,799.00
SKYSHL SM (1310nm + 1550nm ) and MM (850nm + 1300nm ) Optical Time Domain Reflectometer Testing and OPM+OLS+VFL+Event Map Fiber OTDR Tester Compatible with APC and UPC SC+FC+ST+LC.
The SS316T series is SKYSHL’s newly developed optical time domain reflectometer with high dynamic (max up to 45dB for SS316T-2E) and high accuracy. It is mainly used for fiber optic link certification, inspection and fault analysis.
| Weight | 8 lbs |
|---|---|
| Dimensions | 14 × 9 × 8 in |
| Wavelength |
1310/1550/850/1300nm SM(1310nm+1550nm)+MM(850nm+1300nm) Fiber Test ,Accessory |
| Dynamic Range |
32/30/20/22dB ,GPS Only for SS316T, Please buy with SS316T. |
| Model |
SS316T-4A [SM(1310/32dB +1550nm/30dB) + MM(850nm/20dB +1300nm/22dB)] |
| EDZ/ADZ |
0.8m/2.5m for SM ,1.5m/5.0m for MM |
| Screen |
7-inch TFT Capacitive HD Touchscreen(1024×600) |
| Other Functions |
OPM+OLS+VFL+Event Map+RJ45 Network Test+VNC+[ GPS Module+Fiber end inspection) (Exclude, Optional) ] |
| Power Supply |
AC100V~240V, 7.4V/10500mAh Li-ion battery, Work Time 10-13H |
| Dimensions |
Product:25*18*5cm/1.6KG(3.6lb) including battery; Package:35*19*23cm/3.6KG(8.0lb) |
SS316T SM AND MM ALL-IN-ONE OTDR HIGHLIGHTS
🏅SM(1310nm+1550nm) + MM(850nm+1300nm) Fiber OTDR Tester
SKYSHL's SS316T series of handheld Singlemode/SM and Multimode/MM all-in-one Optical Time Domain Reflectometers/OTDR Fiber Testers are available in a wide range of wavelengths and dynamic ranges for testing SM and MM fibers: SS316T-4A [SM(1310/32dB +1550nm/30dB) + MM(850nm/20dB +1300nm/22dB)] . The SS316T series OTDRs are suitable for installation and maintenance of data centers, metro, LAN and FTTX fiber networks.
🏅OTDR + OPM + OLS + VFL + Microscope (Optical) + RJ45 Network Tester
The SKYSHL SS316T Fiber Optic OTDR Tester includes a variety of functions: OTDR 【 SS316T-4A [SM(1310/32dB +1550nm/30dB) + MM(850nm/20dB +1300nm/22dB) 】, Event Map / iLOM, Fiber End Inspection / Microscope (Exclude, Optional ), Optical Power Meter, VFL, Stabilized Optic Light Source / OLS (Same wavelength as the OTDR), and RJ45 network tester, a single OTDR meets all of the fiber optic engineer's testing needs.
🏅EXTREME BLIND ZONE EDZ + ADZ
The SS316T Single mode (SM) and Multimode (MM) all-in-one OTDR fiber tester uses state-of-the-art optical technology and analysis algorithms to provide users with very short event blind zones ( 0.8m for SM / 1.5m for MM ) and attenuation blind zones ( 2.5m for SM / 5.0m for MM ), thus providing a solution for detecting faults over short distances. (Since the pulse width affects the size of the blind zone, a narrow pulse width is recommended for adjacent events, while a wide pulse width is recommended for measuring the far end of the fiber.)
🏅AUTO OTDR, VNC FUNCTION, SMART OTDR
The SS316T SM + MM all-in -one fiber OTDR tester features automatic testing and event mapping, allowing even untrained technicians to become test experts in a short period of time. VNC remote control function, using mobile phones or computers online remote operation OTDR easily solve the remote work, can simultaneously take into account multiple room testing, greatly improve efficiency. the SS316T supports Chinese, English, Spanish, Portuguese, French, Russian, Thai and Korean.
🏅COMPATIBLE WITH APC & UPC SC+ST+FC+LC CONNECTORS
SC, ST, FC and LC are the most widely used fiber optic connectors.SKYSHL SS316T series SM and MM OTDR fully consider the user's usage scenarios, providing field replaceable SC, FC, ST, LC adapters, meanwhile, we provide 2 * FC-FC fiber optic patch cords and 4 flanges (FC-SC, FC-ST, FC-SC, FC-ST, FC-LC, FC-FC), through which compatible SC+ST+FC+LC/APC and SC+ST+FC+LC/UPC connectors can be realized, the fiber engineers don't need to worry about the connection of fiber optic connectors any more.
🏅EVENT MAP /iLOA AND GPS MODULE ( Optional )
The SKYSHL SS316T automatically recognizes the associated fiber link environment and utilizes advanced intelligent optimization algorithms so that it analyzes the loss and faults of all passive elements in the fiber link and displays all fiber events very simply through icon-based views that can be understood by a technician of any skill level as indicated by these simple icons. In addition, the SS316T's GPS module provides real-time OTDR location and tracking of movement trajectories, which prevents OTDR loss and lease protection.
🏅EXCELLENT PON TEST FUNCTION
Extensively optimized for PON networks, it can quickly, easily, and correctly measure networks with high loss, such as PON links (only 1625nm is supported for on-line testing). In PON mode, simply select the routing configuration to be measured on the screen, and the OTDR will automatically determine the appropriate measurement conditions and set the optimal values, ensuring high trace quality even after high loss caused by the optical splitter, with the SS316T-3A supporting up to a 1:32 fiber splitter, and the SS316T-3B supporting up to a 1:64 fiber splitter, SS316T-2C/2D/2E supports up to 1:128 fiber splitter (online test is not supported).
🏅HIGH QUALITY + HIGH PRECISION + EXCELLENT SERVICE
SKYSHL SS316T series SM and MM OTDR products are made of high-quality ABS material and undergo strict quality testing to ensure stable performance and high testing accuracy. In addition, SS316T also supports sor/pdf/jpg file export, USB, RJ45, wifi interfaces to support a variety of connections and controls, more convenient for smart devices and simulation software to read and share. After purchase, you will also get a detailed operation guide and video tutorial to help you get started quickly. We are committed to providing customers with the best quality products and services, and look forward to your trust and support!
SM(1310nm+1550nm) and MM(850nm+1300nm)

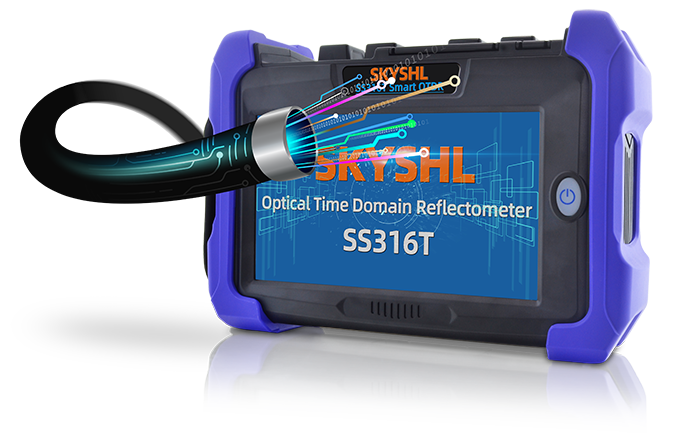

SS316T SM + MM All-in-one OTDR Tester
Optical time domain reflectometry (OTDR) is an important fiber testing tool used to study the performance of new fiber links and detect problems with existing fiber links.
SS316T series of single mode or multimode optical fiber OTDR tester is a multi-functional optical measuring instrument, which integrates OTDR, event map / iLOA, optical power meter, visual fault location, power stable light source, Fiber End Inspection ( Optional ) , RJ45 Network Tester, GPS module ( Optional ) and other functions, It is the right assistant for optical cable construction, installation and maintenance, project acceptance and on-site repair.
SS316T SM AND MM ALL-IN-ONE OTDR PARAMETERS
| ✨Model ( Wavelength / Dynamic Range ): For SM and MM fibers: SS316T-4A [SM(1310/32dB +1550nm/30dB) + MM(850nm/20dB +1300nm/22dB)] |
| ✨Event Blind Zone / Attenuation Blind Zone: ( 1.0m/3.5m for SM | 1.5m/5.0m for MM ) |
| ✨Testing Fiber Type: Singlemode / SM and Multimode / MM |
| ✨Dispaly: 7inches HD TFT Color Touch Screen (1024 × 600)) |
| ✨Test Range: SM: Max up to 180km/112mi (for 45dB), MM: 850nm-Max up to 6km/3.7mi; 1300nm-Max up to 45km/28mi |
| ✨Range Value: 0.1km, 0.3km, 0.5km, 1.3km, 2.5km, 5km, 10km, 20km, 40km, 80km, 120km,160km, 260km, 320km |
| ✨Pulse Width: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1000ns, 2500ns, 5000ns, 10000ns, 20000ns |
| ✨Ranging Accuracy: ±(0.75 m + Measurement distance × 2 × 10−5 + Sampling resolution) (m) |
| ✨Number of sampling points: Max 250000 |
| ✨Loss Accuracy: ±0.03dB/dB |
| ✨Return loss measurement accuracy : ±2 dB |
| ✨Sampling Points : Min 0.04m |
| ✨Range unit : km, m, thousand feet, feet |
| ✨Power Supply: Li-battery：7.4V/10500mAh, Power Adapter：100 - 240V AC, 50/60Hz |
| ✨Battery Life: Standby＞25h；Measuring Time＞15h |
| ✨File Format: SOR Standard File Format / PDF |
| ✨DataStorage: TF / Micro-SD 32G ( 80000 groups of curve ) |
| ✨Data Interface: USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD |
| ✨Temperature: -10℃～+50℃ ( Operating ) / -40℃～+70℃ ( Storage ) |
| ✨Relative Humidity: 0～95％Non Condensing |
| ✨ Language: Support Chinese, English, Spanish, Portuguese, French, Russian, Thai and Korean |
| ✨Dimension: Product: 25*18*5cm / 1.6KG (3.6lb) including battery; Package:35*19*23cm / 3.6KG (8.0lb) |
| 💎Fiber End Inspection ( Exclude, Non-standard accessories, Please contact us if needed. ) |
| ✨Pass / Fail: Yes |
| ✨Magnification: 400X |
| ✨Resolution: ≥1.0um |
| ✨Electrical interface: USB2.0 |
| ✨CMOS size: 1/3 inch |
| ✨Optical Connector: FC/UPC,SC/UPC,ST/UPC |
| 💎Optical Fiber Power Meter / OPM |
| ✨Wave Range / Test Range ( OPM ): 800nm ~ 1700nm / -70dBm ～ +6dBm |
| ✨Calibration Wavelength ( OPM ): 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm / 1650nm |
| ✨Uncertainty: ±5% (-25dBm, CW) |
| ✨Frequency Identification: CW |
| 💎Optical Fiber Laser Light Source / OLS |
| ✨LD Type: FP-LD |
| ✨Output Wavelength: SM( 1310nm + 1550nm ) and MM ( 850nm and 1300nm ) |
| ✨Output Power: ≥-10dBm |
| ✨Modulation Frequency: CW / 270 / 1k / 2kHz |
| ✨Stability: CW, ±0.5dB / 15min ( Test after 15mins of preheating ) |
| 💎 Visual Fault Locator / VFL |
| ✨Work Wavelength: 650nm ± 20nm |
| ✨Output Power: ≥ 10mW |
| ✨Mode: CW, CHOP (2Hz) |
| ✨Input port: 2.5 mm Universal ferrule type for FC, SC, ST |
| 💎 RJ45 Networks Test (Built-in) |
| ✨Applicable cable: CAT5, CAT6 |
| ✨Distance of Cable Collation: 300m |
| ✨Distance of emitting signal: 300m |
| 💎 GPS Module (Exclude, Optional, Built-in) |
| ✨Location accuracy: < 50m |
| ✨Real-time Monitoring: support |
| 💎 VNC Module (Built-in) |
| ✨Compatible Systems: Android / IOS / Computer |
| ✨Data transmission : Yes |
| ✨Remote Control : Yes |
Auto OTDR Mode
Smart OTDR
The Auto test lets you take advantage of the full power of your OTDR—bringing automation to a new level and enabling untrained technicians to become test experts in no time.
With one click, the unit automatically performs link recognition, sets the optimal parameters and launches multiple acquisitions and analyses—at multiple wavelengths—consolidating the results obtained for every link section and every network element. Get accurate information right away on each link element and export it to a single report.
At the same time, SKYSHL SS316T series SM+MM OTDR tester has the most advanced optical technology, which can achieve extremely short Event dead zone ( 0.8m for SM / 1.5m for MM) and Attenuation dead zone (2.5m for SM / 5.0m for MM). This advanced optical technology enables SS316T It can detect the failure of very short fibers.
SS316T SM AND MM ALL-IN-ONE OTDR FEATURES
| ✨For SM and MM fibers: SS316T-4A [SM(1310/32dB +1550nm/30dB) + MM(850nm/20dB +1300nm/22dB)] |
| ✨The body of the SS316T is Small and light, and it is very convenient to carry outdoors. |
| ✨The 7-inch capacitive touch screen makes the operation more sensitive. |
| ✨7.4V/10500mAh lithium battery, continuous 12-15 hours. |
| ✨Integrate Visual Fault Locator, Optical Power meter, Optical Light Source, Event map (iOLA), Fiber End Inspection / Microscope (Exclude, Optional functions), VNC/WIFI remote control mudule, GPS module (Exclude, Optional) and RJ45 Network tester function. |
| ✨One-button operation, automatic analysis and OTDR user interface tailored for different skill levels. |
| ✨Single mode and multimode all-in-one, and SS316T can test both multimode and single-mode. |
| ✨Very short event dead zone (0.8m for SM / 2.5m for MM ) and attenuation dead zone ( 3.0m for SM / 5.0m for MM ). |
| ✨Compatible with SC, FC, ST, LC UPC and SC, FC, ST, LC APC adapter. |
| ✨Supports automatic OTDR, event map, intelligent event map / iLOA of fiber connections. |
| ✨Support sor format, generate pdf test report and screenshot. |
| ✨Intelligent link diagram, support Pass / Fail judgment. |
| ✨Warnning function could prevent module of OTDR damaged by optical signal. |
| ✨Multi-trace analysis / Bidirectional testing / 4-points test. |
| ✨Minimum sampling resolution 0.04m / Maximum sampling points 250,000. |
| ✨VNC remote control function, using mobile phones or computers online remote operation OTDR easily solve the remote work, can simultaneously take into account multiple room testing, greatly improve efficiency. |
| ✨The self-calibration function shortens maintenance time and reduces maintenance costs. |
| ✨Realtime measuring function, convenient to monitor the splicing process. |
| ✨The GPS module (Exclude, Optional ) allows real-time OTDR location and tracking of runs to prevent theft or rental protection. |
| ✨Fiber optic connector endface inspection / Optical fiber microscope module allows visual inspection of the connector surface. Combined with the handle probe (Exclude, Optional ), it automatically analyzes scratches and dust on the fiber optic connector, saves an image of the surface and determines the results, and provides a PDF report. |
| ✨Support USB, Micro SD card, RJ45 LAN port, WIFI module, etc. to share data, and support windows simulation software to better analyze the test data. |
| ✨Quickly, easily and correctly measure networks with large losses, such as PON links (Only 1490nm / 1625nm / 1650nm support on-line test). In PON mode, simply select the route configuration to be measured on the screen, and OTDR will automatically determine the appropriate measurement conditions and set the optimal value, even after the optical splitter caused large losses, the SS316T OTDR can ensure high trace quality. |
| ✨Provide data simulation software to process, generate and print report. |
| ✨Support Bellcore GR196 and SR-4731 format file(.sor). |
| ✨Support Chinese, English, Spanish, Portuguese, French, Russian, Thai and Korean |

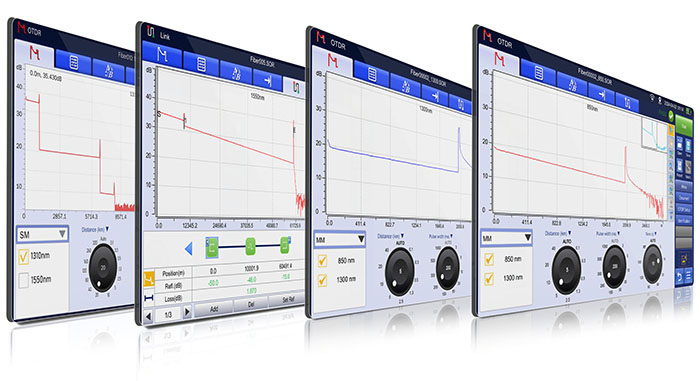

OTDR Test Curve and Event Type
Test Curve
A picture is worth a thousand words, and the OTDR picture (or "trace") takes a lot of words to describe all the information in it!
The slope of the fiber trace shows the attenuation coefficient of the fiber and is calibrated in dB/km by the OTDR. Connectors and splices are called "events" in OTDR jargon. Both should show a loss, but connectors and mechanical splices will also show a reflective peak. The height of that peak will indicate the amount of reflection at the event.
Reflective pulses can show you the resolution of the OTDR. You cannot see two events closer than is allowed by the pulse width. Generally longer pulse widths are used to be able to see farther along the cable plant and narrower pulses are used when high resolution is needed, although it limits the distance the OTDR can see.
Built-in OTDR + OPM + OLS + VFL + Inspection (Exclude , Optional)
Multi-Function
SKYSHL SS316T SM and MM all-in-one optical time domain reflectometer is a multifunctional optical measuring instrument, integrating Optical Time Domain Reflectometer/ OTDR 【SS316T-4A [SM(1310/32dB +1550nm/30dB) + MM(850nm/20dB +1300nm/22dB)】 , Fiber end inspection (Exclude, Optional function, and Please Contact us if needed), Visual fault locator / VFL(650nm 10mW), optical power meter / OPM [ 850-1625nm / -70~+6db ], and Optical Light Source / OLS【 SM( 1310nm+1550nm ) + MM (850nm+1300nm ) 】, RJ45 Network Tester, GPS module (Exclude, Optional) and other functions. The 7-inch capacitive color touch screen and button dual design are simple to operate and have a friendly interface. It is a powerful assistant for optical cable construction and installation, project acceptance and on-site repair.

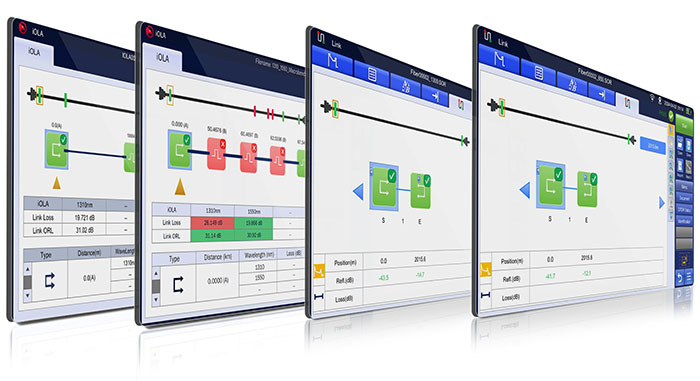

Graphics Analysis Mode

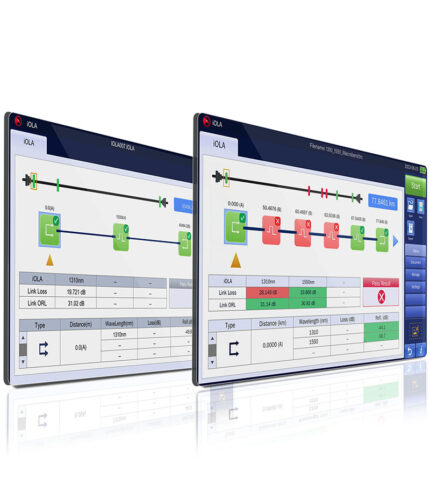

Event Map
Although the operation and usability of the OTDR has been greatly simplified over the years, it is still considered an advanced operating tool and the analysis of its results can be complex. To make fiber optic testing easier for users, the SS316T includes an "Graphics Analysis/Event Map" feature that removes the complexity from OTDR testing and results analysis.
Graphics Analysis/Event Map automatically identifies the associated fiber optic link environment and utilizes advanced intelligent optimization algorithms to analyze the loss and faults of all passive elements in the fiber optic link and displays all fiber optic elements in a very simple icon-based view that can be understood by technicians of any skill level.
The Event Map feature simplifies the complexity of fiber optic testing operations and results analysis, bringing a whole new operational experience to fiber optic engineers.

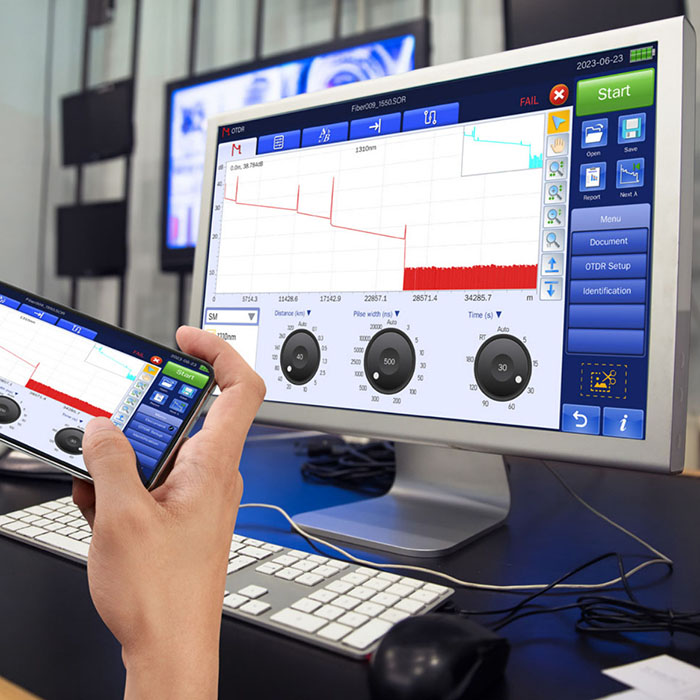

WIFI Module
APP and Windows Software
With the coming of the intelligent era, the combination of OTDR and smart devices is the future development trend, making full use of the high convenience of smart devices, and bringing a new way of operation for users.
The S316T's VNC remote control function makes it easy to solve remote work by using a cell phone or computer to remotely operate the OTDR online, which can take care of tests in multiple rooms at the same time, greatly improving work efficiency.

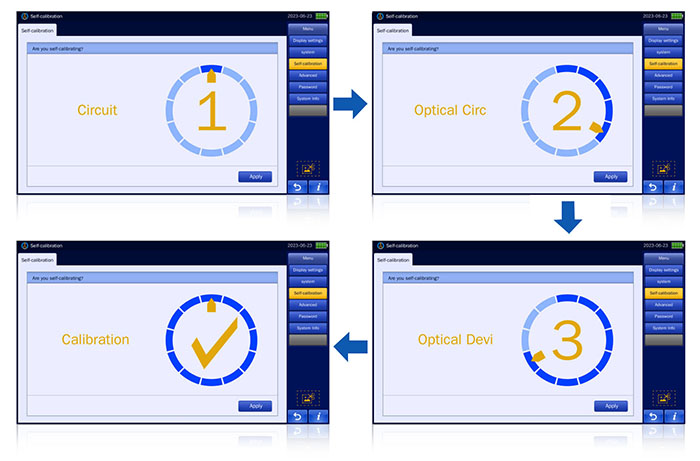

One-button Automatic Calibration
Self Calibration
The OTDRs are equipped with intelligent self-calibration technology, which allows users to complete the calibration process automatically with just one-button operation, without relying on manual intervention or complex settings. This feature significantly reduces commissioning time, ensures stable measurement accuracy, and effectively reduces maintenance costs, especially for rapid deployment and troubleshooting scenarios of fiber optic networks, which significantly improves operation and maintenance efficiency.
SS316T Series OTDR
| Model | Wavelength/Dynamic Range | Test Types |
|---|---|---|
| SS316T-2A | 1310/1550nm 32/30dB | Singlemode / SM |
| SS316T-2B | 1310/1550nm 35/33dB | Singlemode / SM |
| SS316T-2C | 1310/1550nm 40/38dB | Singlemode / SM |
| SS316T-2D | 1310/1550nm 42/40dB | Singlemode / SM |
| SS316T-2E | 1310/1550nm 45/43dB | Singlemode / SM |
| Model | Wavelength/Dynamic Range | Test Types |
|---|---|---|
| SS316T-3A | 1310/1550/1625nm 32/30/28dB | SM / Online PON |
| SS316T-3B | 1310/1550/1625nm 38/36/34dB | SM / Online PON |
| SS316T-2MM | 850/1300nm 20/22dB | Multimode / MM |
| SS316T-4A | 1310/1550/850/1300nm 32/30/20/22dB | SM + MM |
| SS316T-GPS | Built-in | --- |
(Note: 1625nm, 1650nm with optical filter)
THE BEST TOOLS FOR FIBER OPTIC NETWORKS
Wide Application
SS316T series Optical Time Domain Reflectometer / OTDR is an important tool for the maintenance and construction of optical fiber networks. It is very suitable for radio and television networks, intelligent power networks, intelligent transportation systems, CCTV/CATV networks, government office networks, financial networks, FTTH, LAN, data centers and cloud computing network etc..
SS316T-4A Package
Why we developed SS411F fusion splicer
The Development of SKYSHL SS316T: Mastering PON Network Challenges
The development of the SS316T OTDR by SKYSHL marked a significant leap in optical testing technology, particularly tailored for PON (Passive Optical Network) systems. The engineers at SKYSHL sought to address the challenges of testing high-loss networks, which are often a struggle in traditional OTDR devices. Recognizing the growing demand for efficient and precise PON network analysis, they designed the SS316T to automatically adapt to various testing scenarios, ensuring optimal performance even in complex, high-loss conditions caused by fiber splitters.
What set the SS316T apart was its ability to support multiple fiber splitter configurations, from 1:32 to 1:128, making it highly versatile for a wide range of PON network installations. The device simplifies the testing process: with just a few taps, users could select the desired configuration, and the OTDR would automatically adjust the measurement parameters, ensuring fast and accurate results.
With PON optimization as a core feature, the SS316T enables technicians to accurately track network performance in real time, even under challenging conditions. Its user-friendly interface and comprehensive functionalities, such as optical power measurement, visual fault localization, and GPS module support, made it the go-to tool for field engineers working on fiber optic construction, emergency repairs, and project acceptance testing. SKYSHL's SS316T OTDR embodies the brand's commitment to making advanced optical testing tools both powerful and accessible.
Learn more our company
Learn more our product
SS316T Questions and Answers
More FAQ
PRODUCT FAQ
Yes, the SS316T can test multimode fibers. To test multimode fibers, select the OTDR with 850nm and 1300nm wavelengths and test multimode fibers using 850nm or 1300nm.
Yes, SS316T can test single mode fibers, to test single mode fibers, please select OTDR with 1310nm,1490nm,1550nm,1625nm and 1650nm wavelengths and test singlemode fibers using 1310nm, 1550nm and 1625nm, however, we usually use 1310 and 1550nm to test singlemode fiber and use 1625nm to test singlemode PON networks online.
Yes, SS316T can test PON network, if you want to test PON network, please use 1310nm, 1550nm and 1625nm to test PON network. In addition, since the 1625nm wavelengths have filters, users can test PON networks online using 1625nm optical signals without interrupting the network. However, please note that it is strictly prohibited to use 1310nm and 1550nm to test the fiber online without interrupting the network signal. Otherwise, although the SS316T has an alarm function, it is likely to damage the OTDR.
Fiber optic end detector function is a non-standard function of SS316T, if you need this function, please contact us to purchase fiber optic end detector handle before payment, and we will enable this function on SS316T's equipment.
Please note that this product must be shipped together with the OTDR and fiber optic microscope handle, if shipped separately there is a possibility that the OTDR and fiber optic end detector may not be compatible and cannot be used.
The connector/adapter of SS316T is usually UPC by default for 1310nm,1550nm,850nm,1300nm, and APC by default for 1625nm (we will confirm with you before shipment, or you can also consult with us before ordering). At the same time, we are equipped with fiber optic patch cords and fiber optic flanges to realize the transfer of APC, UPC interfaces. Of course, if you have any special requirements, you can contact us before purchase.
Any use of the problem buyers can contact us (click the orange circle in the lower left corner or Click here to contact us), our professional engineers will answer your questions by email, operating instructions, remote video conferencing.
PURCHASE FAQ
We all can provide commercial invoice.
We support Paypal,credit card,TT(payment method for quantity more than 10 units) and other payment methods.
The product page will show the shipping country and stock quantity, buyers choose the shipping place as China when purchasing, it will be shipped from China factory, except for the shipment outside of China for the local warehouse shipment (please choose the buyer's country as the shipment place, when the receiving country and the shipping country are not the same, it will be used in the cross-border mode to be shipped from the factory in China).
No reason to return within 90 days, free replacement within 1 year, free repair within 3 years, lifetime limited warranty.
🔹🔹🔹Product Catalog🔹🔹🔹
Reviews
Clear filtersOnly logged in customers who have purchased this product may leave a review.
About Shipping
We seamlessly manage the entire production, sales, and delivery process digitally, which improves the overall production efficiency and strictly controls the quality of the products, and at the same time, the localized deployment of local warehouses enables quick handover of goods.
Our shipment is divided into 2 modes, local warehouse mode and cross-border mode, the product page will show the stock quantity according to the country, if it shows that your country's stock is available, then be sure to select your own country of receipt, we will ship to the buyer through the local warehouse, if your country is out of stock or does not show your country's country name, then please select China, we will ship to you through the cross-border shipment mode from the factory in China. (Learn more)
SHIPPING INFORMATION
Local warehouse mode: take advantage of local warehouse storage, goods are shipped to buyers from local warehouses.
Cross-border mode: goods are shipped to buyers from Chinese factories. (Learn more)
Local Warehouse Mode: We ship from customer's local warehouse, usually delivery is completed within 2-7 days.
Cross-border mode: If the customer chooses the warehouse in China when purchasing goods, then we will first search for the customer's local inventory, if there is, then we will ship the goods from the local overseas warehouse, the delivery time is 2-7 days, if there is no inventory, then we will ship the goods from China, the time is about 7-15 days.
Local Warehouse Mode: We will send the goods from customer's local warehouse, customer only wait for the delivery to the door.
Cross-border mode: we will send the goods from China to the buyer, and the buyer needs to clear the customs in their own country and complete the payment of customs duty. Some countries have duty free delivery service, usually we will inform you by email.
Local warehouse mode: according to the local warehouse courier company.
Cross-border mode: Usually use UPS, DHL, Fedex, China Post, special transportation and other courier companies, if the customer has special requirements, you can contact us, inform the order number and the name of the courier company.
Regardless of which courier company to ship, we will first use the optimal shipping channel, and fast, safe, on-time delivery of goods to customers.
| DESCRIPTION | |
|---|---|
| SS316T-Datasheet-EN(English) | Download |
Related products

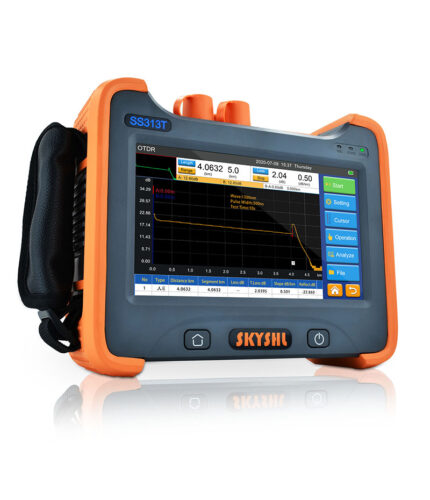

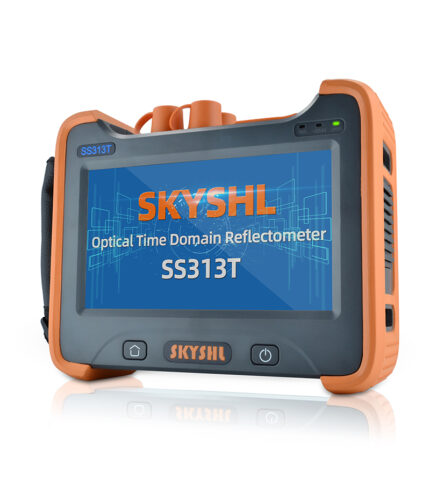

SS313T Optical Time Domain Reflectometer – Fiber OTDR Tester
