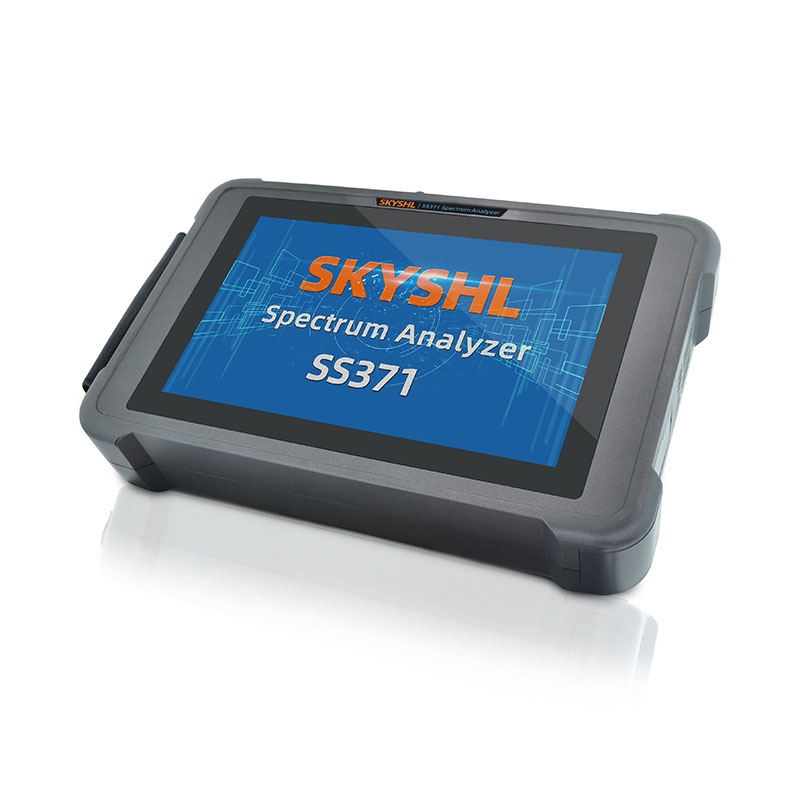

SS371 9kHz～40GHz Handhold External Field Communication Tester
$777.00 – $44,400.00
SKYSHL SS371 series external field communication tester is a handheld integrated wireless signal test platform for base station,satellite,vehicle networking,wireless terminal,radio and other equipment field test requirements.
| Weight | 9 lbs |
|---|---|
| Dimensions | 16.5 × 14 × 8 in |
| Model |
SS371A/SS371AT (9kHz~4.4GHz @ SS371AT with 100kHz~4Ghz Generator) |
| Frequency acc |
±0.02ppm（>1GHz） |
| Phase Noise |
≤-106dBc/Hz@10kHz @1GHz |
| Screen/Port |

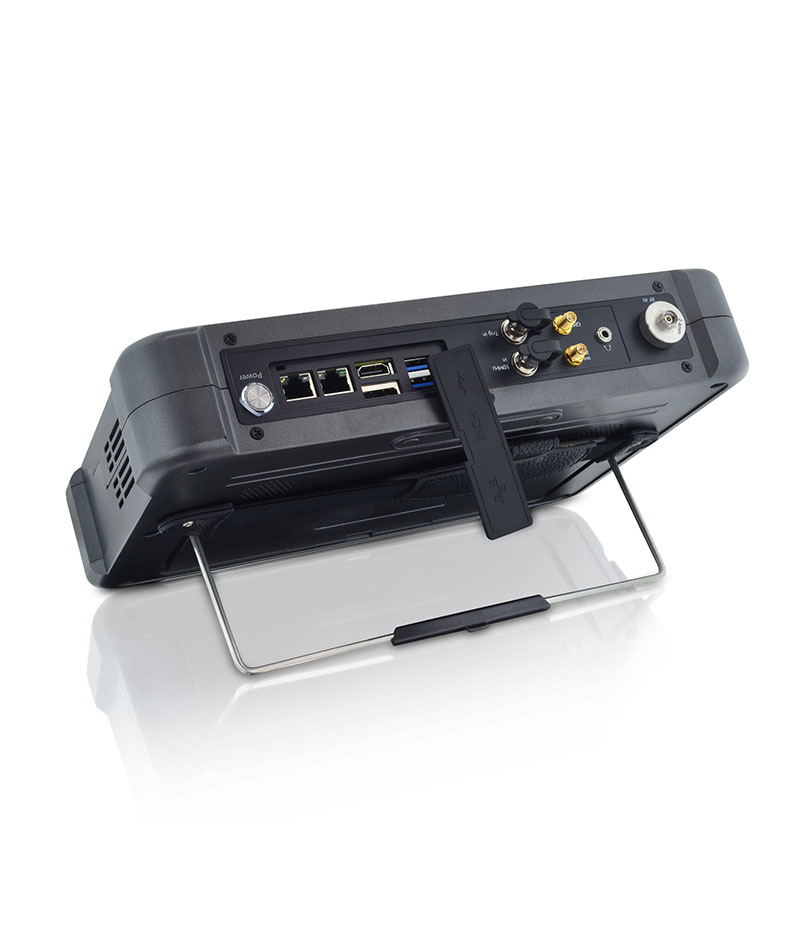

10.1 inches TFT Screen(1920×1200)/ USB + LAN + HDMI + Audio + Trig in + WIFI + GPS |
| Dimensions |
31x20x6cm/12x8x2.4inch (2.5kg/5.5LB); Package: 42x35x20cm/16.5*14*8inch(4.1kg/9LB) |
SS371 EXTERNAL FIELD COMMUNICATION TESTER / SPECTRUM ANALYZER HIGHLIGHTS
🏅COMPREHENSIVE WIRELESS SIGNAL ANALYSIS
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer is a high-performance Spectrum Analyzer designed for base station, satellite, vehicle networking, and RF testing. Supporting 5G NR, LTE, GSM, AM/FM, PM, and digital modulations like QAM and PSK, it provides real-time spectrum analysis, interference detection, and signal monitoring for operators, equipment manufacturers, and spectrum monitoring agencies.
🏅BROAD FREQUENCY RANGE & HIGH SENSITIVITY
The SKYSHL SS371 Field Communication Tester / Spectrum Analyzer covers a broad frequency range from 9kHz to 40GHz, ensuring accurate signal detection across multiple bands. With a spectrum sweep speed of 133GHz/s (@25KHz) and an ultra-low noise floor of -164dBm/Hz, it effectively captures weak, transient, and hidden signals in complex RF environments.
🏅ADVANCED INTERFERENCE DETECTION & DIRECTION FINDING
The SS371 External Field Communication Tester / Spectrum Analyzer is equipped with waterfall map measurement, afterglow spectrum analysis, and a directional antenna for pinpointing interference sources. Its multi-point positioning and GPS-based road test functions enhance wireless spectrum monitoring, interference troubleshooting, and network optimization.
🏅100MHZ REAL-TIME BANDWIDTH FOR HIGH-SPEED TESTING
With 100MHz real-time analysis bandwidth, the SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer enables comprehensive signal quality assessment, including adjacent channel leakage ratio (ACLR), channel power, harmonic distortion, and phase noise measurement. This makes it an essential tool for RF engineers conducting high-precision testing.
🏅10.1” HD TOUCHSCREEN & REMOTE CONTROL FOR EASY OPERATION
The SS371 External Field Communication Tester features a 10.1-inch capacitive touchscreen with multiple viewing modes, including “daytime mode” and “dark mode”, ensuring visibility in any lighting condition. It supports remote operation, allowing engineers to conduct wireless signal testing efficiently from a distance.
🏅LIGHTWEIGHT, PORTABLE & LONG BATTERY LIFE FOR FIELD TESTING
Designed for portability, the SKYSHL SS371 Spectrum Analyzer weighs ≤2.5kg and supports various mounting and carrying methods for field engineers. It offers flexible power supply options (AC/DC), with a single battery providing up to 3 hours of continuous operation, making it the perfect tool for on-the-go RF and spectrum analysis.
9KHz~4.4GHz / 6.3GHz / 7.5GHz / 9GHz / 20GHz / 40GHz
SS371 External Field Communication Tester
The SS371 series External Field Communication tester / Spectrum Analyzer is a handheld wireless signal comprehensive test platform for field testing needs of base stations, satellites, Internet of Vehicles, wireless terminals, radios and other equipment. It provides test solutions for application scenarios under field conditions such as communication equipment signal monitoring and analysis, satellite signal analysis, signal coverage testing, and communication interference troubleshooting, and provides test support for operators, operation and maintenance providers, equipment manufacturers and wireless spectrum monitoring units.
SS371 Field Communication Tester / SPECTRUM ANALYZER PARAMETERS
| ✨Model ( Frequency Range). |
| ● SS371A/SS371AT (9kHz~4.4GHz @ SS371AT with 100kHz~4Ghz Generator) |
| ● SS371B/SS371BT (9kHz~6.3GHz @ SS371BT with 100kHz~6.5GHz Generator) |
| ● SS371C/SS371CT (9kHz~7.5GHz @ SS371CT with 100kHz~7.5GHz Generator) |
| ● SS371D/SS371DT (9kHz~9GHz @ SS371CT with 100kHz~9GHz Generator) |
| ● SS371E(9kHz~20GHz) |
| ● SS371F(9kHz~40GHz) |
| ✨Frequency acc: ±0.02ppm（＞1GHz） |
| ✨Phase noise: |
| ● ≤-106dBc/Hz@10kHz @1GHz |
| ● ≤-105dBc/Hz@100kHz @1GHz |
| ● ≤-127dBc/Hz@1MHz @1GHz |
| ✨Average noise display level |
| ● 100kHz～50MHz:-142dBm/Hz(Amplifier Off) | -145dBm/Hz(Amplifier On) |
| ● 50MHz～6.3GHz:-148dBm/Hz(Amplifier Off) | -164dBm/Hz(Amplifier On) |
| ● 6.3GHz～9GHz:-148dBm/Hz(Amplifier Off) | -161dBm/Hz(Amplifier On) |
| ● 9GHz～20GHz:-145dBm/Hz(Amplifier Off) | -160dBm/Hz(Amplifier On) |
| 9KHz-40GHz platform |
| ● 100kHz～1GHz:-140dBm/Hz |
| ● 1GHz～30GHz:-147dBm/Hz |
| ● 30GHz～40GHz:-143dBm/Hz |
| ✨Level accuracy: ±1dB |
| ✨Level resolution: 0.1dB |
| ✨Maximum input safe power: ±1dB |
| ● 26dBm (9kHz~4.4GHz/6.3GHz) |
| ● 25dBm (9kHz~7.5GHz/9GHz/20GHz/40GHz) |
| ✨IP3 |
| ● 100kHz～3GHz: ≥+10dBm |
| ● 3GHz～6.3GHz : ≥+12dBm |
| ✨HD2: <-75dBC |
| ✨Residual response: <-90dBm |
| ✨Reference levelrange: -130dBm～+30dBm |
| ✨SWR: <2.0 |
| ✨Real-time bandwidth: 100MHz |
| ✨Demodulation analysis : Demodulation analysis 5G NR、LTE、GSM、ector signal,audio analysis、ETC |
| ✨Demodulation Indicators |
| ● 5G NR: 1.2%@2.6GHz(PSS) |
| ● 5G NR: 1.3%@2.6GHz(SSS ) |
| ● 5G NR: 1.0%@2.6GHz(PBCH ) |
| ● LTE: 0.7%@1.8GHz(QPSK) |
| ● LTE: 0.7%@1.8GHz(QAM16) |
| ● Vector Signals: 0.8%@1.8GHz(1Msps QPSK) |
| ● Vector Signals: 0.8%@1.8GHz(Symbol Rate 1Msps 64QA |
| ✨Power supply: AC：100-240V/50-60Hz | DC：19V |
| ✨Operating: -10℃~50℃ |
| ✨Display: 10.1 inches HD TFT Color Touch Screen |
| ✨Dimensions/Weight: 31x20x6cm/12x8x2.4inch (2.5kg/5.5LB); Package: 42x35x20cm/16.5*14*8inch(4.1kg/9LB) |
| ✨HD2: <-75dBC |
| ✨HD2: <-75dBC |

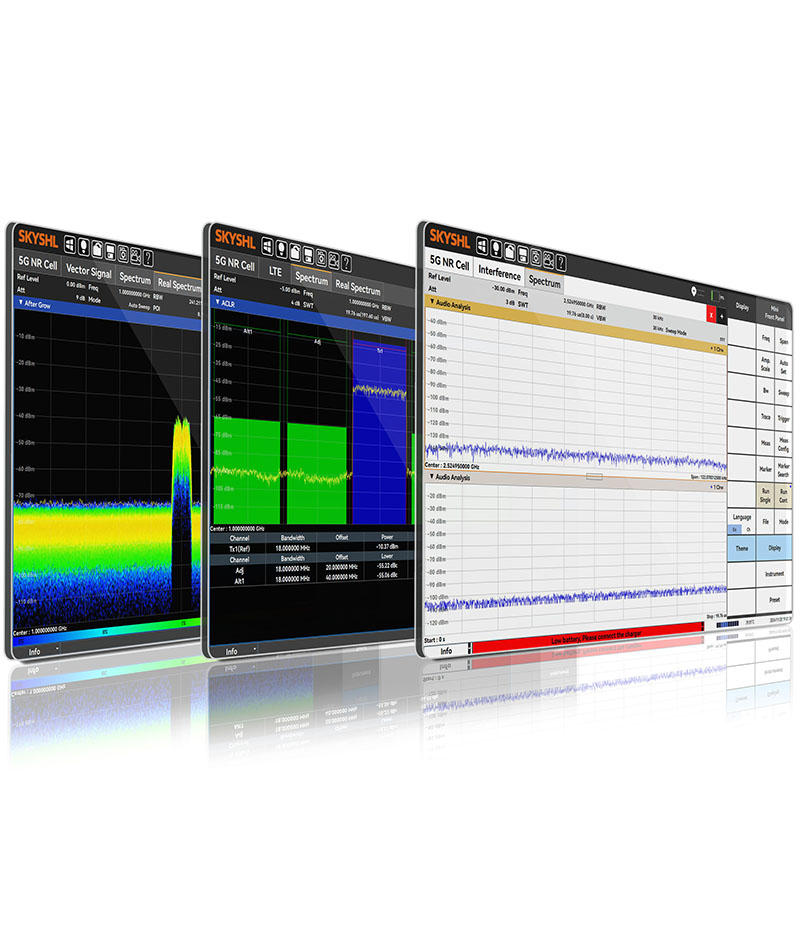

Spectrum Scanning | 3D Waterfall Map | Afterglow Spectrum
Spectrum Aanalysis
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer is designed to support a maximum frequency of 40GHz, featuring an ultra-fast sweep speed that enables real-time capture of burst signals with high precision. Equipped with a built-in 3D waterfall map, it can directly analyze measured signal frequencies, signal characteristics, duration, and amplitude variations, providing a comprehensive view of signal behavior. Additionally, the afterglow spectrum analysis function enhances its ability to detect and capture hidden interference signals in real time, ensuring accurate monitoring and troubleshooting in complex wireless environments. These advanced features make the SS371 Spectrum Analyzer an essential tool for spectrum analysis, interference detection, and signal quality assessment in base station testing, satellite communications, and wireless network optimization applications.
SS371 FIELD TESTER / SPECTRUM ANALYZER FEATURES
| ✨Frequency Range from 9 kHz up to 40 GHz. |
| SS371A/SS371AT (9kHz~4.4GHz @ SS371AT with 100kHz~4Ghz Generator) |
| SS371B/SS371BT (9kHz~6.3GHz @ SS371BT with 100kHz~6.5GHz Generator) |
| SS371C/SS371CT (9kHz~7.5GHz @ SS371CT with 100kHz~7.5GHz Generator) |
| SS371D/SS371DT (9kHz~9GHz @ SS371CT with 100kHz~9GHz Generator) |
| SS371E(9kHz~20GHz) |
| SS371F(9kHz~40GHz) |
| ✨Interference analysis: waterfall map measurement, afterglow spectrum, signal direction finding, interference positioning, four-window interference investigation, TDD system interference investigation, etc. |
| ✨Base station analysis: 5G NR, LTE, GSM, etc. |
| ✨Signal analysis: AM/FM/PM/LSB/USB, ASK/FSK/MSK/PSK/QAM, etc. |
| ✨Road test coveragez: Indoor signal coverage, outdoor road test. |
| ✨Test analysis: Spectrum scanning, field intensity measurement, channel power, OBW, ACLR, 100MHz real-time spectrum, spectrum emission template, signal-to-noise ratio, harmonic distortion, phase noise, differential spectrum, zero sweep width, signal strength, channel scanning, audio demodulation, ETC analysis, etc. |
| ✨9kHz~4.4GHz / 6.3GHz / 7.5GHz / 9GHz / 20GHz / 40GHz frequency range. |
| ✨Spectrum sweep speed 133GHz/s (@25KHz), which can effectively capture the signal. |
| ✨5G NR/TDD-LTE/FDD-LTE/GSM and other base station signal demodulation analysis functions. |
| ✨100MHz real-time analysis bandwidth. |
| ✨Support TDD system upstream and downstream separation interference investigation test. |
| ✨10-inch FTF touchscreen, high resolution 1920×1200 pixels, with "daytime mode," "dark mode," and other modes of operation. |
| ✨Support directional antenna with electronic compass for signal direction finding, support multi-point positioning function. |
| ✨Support wireless communication road test, with GPS can achieve automatic positioning road test function. |
| ✨ Small size, lightweight (≤2.5kg), flexible power supply (single battery working time ≥3 hours), easy to maneuver, a variety of carrying methods, support remote control. |

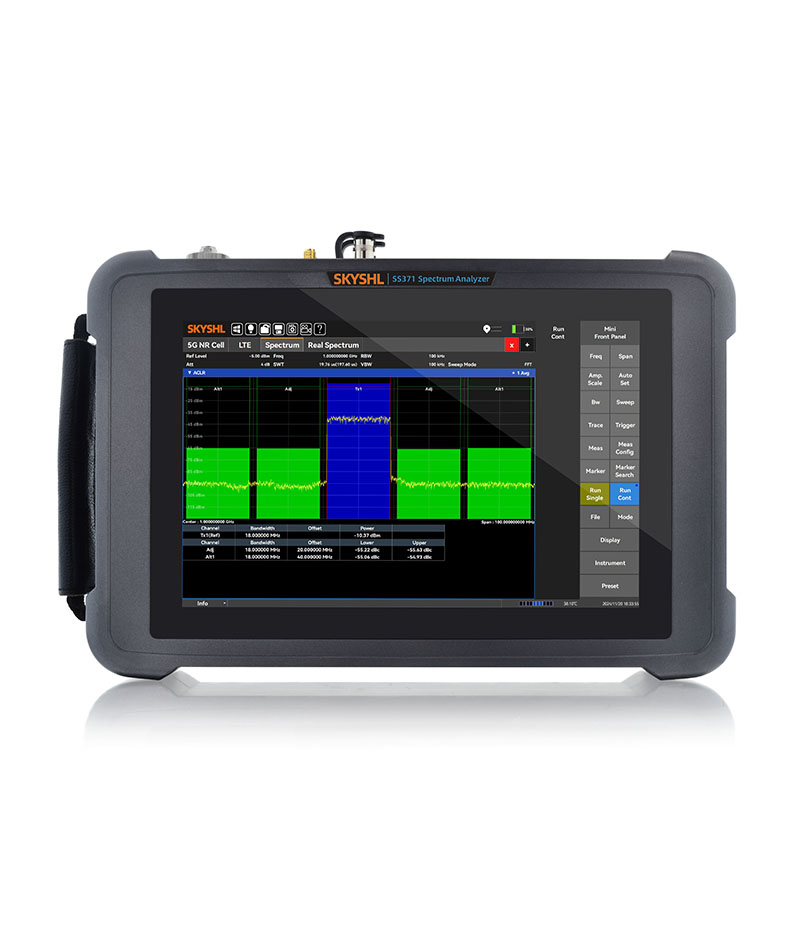

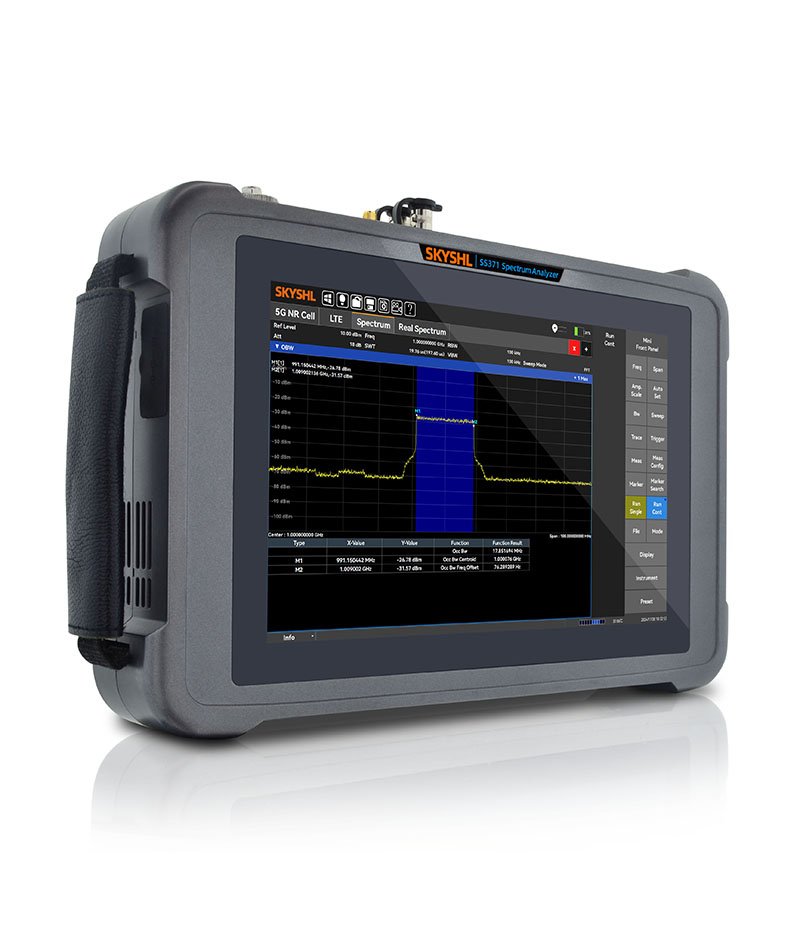

OBW | ACLR | Channel Power
Wireless Signal Spectrum Analysis
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer provides comprehensive wireless signal spectrum analysis, offering precise measurements for signal quality assessment and interference detection. With occupied bandwidth (OBW) analysis, it effectively measures signal bandwidth, automatically determining 99% power bandwidth (Adjustable) and configurable XdB power-down bandwidth (Adjustable), ensuring accurate evaluation of signal transmission. The adjacent channel leakage suppression ratio (ACLR) function detects channel leakage in transmitted signals and supports multiple communication standard test templates, along with user-defined signal testing for enhanced flexibility. Additionally, the channel power measurement feature enables precise detection of signal power within a specified bandwidth, providing critical insights into RF transmission quality. With these advanced capabilities, the SS371 Spectrum Analyzer is an essential tool for engineers and operators conducting wireless communication testing, interference troubleshooting, and spectrum monitoring across various industries.
Base Station Positioning | Outdoor/indoor Road Test | 5G NR/GSM/LTE Demodulation
Wireless Base Station Analysis
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer delivers powerful wireless base station analysis, making it an essential tool for engineers conducting 5G, 4G, and GSM network testing. It supports base station lock positioning and interference source mapping, enabling precise identification and troubleshooting of network issues. The SS371 also excels in outdoor and indoor road testing, utilizing high-precision GPS positioning maps to analyze cell ID, RSSI, RSRP, and other critical parameters, ensuring comprehensive signal coverage assessment. For advanced 5G NR analysis, it supports multi-beam demodulation, allowing simultaneous detection of 8 Beam IDs, with key indicators such as SS-RSRP, SS-RSRQ, SS-SINR power index, SSB constellation charts, and EVM. Additionally, the device provides LTE demodulation, delivering detailed 4G signal analysis, including channel power, sub-frame power, and special sub-frame indicators, as well as GSM signal demodulation, offering precise channel power, frequency error, load-dry ratio, and BSIC index testing. The SS371 Spectrum Analyzer is an indispensable tool for network optimization, signal monitoring, and interference troubleshooting.
SS371 Field Communication Tester / SPECTRUM ANALYZER PARAMETERS
| ✨Model ( Frequency Range). |
| ● SS371A/SS371AT (9kHz~4.4GHz @ SS371AT with 100kHz~4Ghz Generator) |
| ● SS371B/SS371BT (9kHz~6.3GHz @ SS371BT with 100kHz~6.5GHz Generator) |
| ● SS371C/SS371CT (9kHz~7.5GHz @ SS371CT with 100kHz~7.5GHz Generator) |
| ● SS371D/SS371DT (9kHz~9GHz @ SS371CT with 100kHz~9GHz Generator) |
| ● SS371E(9kHz~20GHz) |
| ● SS371F(9kHz~40GHz) |
| ✨Frequency acc: ±0.02ppm（＞1GHz） |
| ✨Phase noise: |
| ● ≤-106dBc/Hz@10kHz @1GHz |
| ● ≤-105dBc/Hz@100kHz @1GHz |
| ● ≤-127dBc/Hz@1MHz @1GHz |
| ✨Average noise display level |
| ● 100kHz～50MHz:-142dBm/Hz(Amplifier Off) | -145dBm/Hz(Amplifier On) |
| ● 50MHz～6.3GHz:-148dBm/Hz(Amplifier Off) | -164dBm/Hz(Amplifier On) |
| ● 6.3GHz～9GHz:-148dBm/Hz(Amplifier Off) | -161dBm/Hz(Amplifier On) |
| ● 9GHz～20GHz:-145dBm/Hz(Amplifier Off) | -160dBm/Hz(Amplifier On) |
| 9KHz-40GHz platform |
| ● 100kHz～1GHz:-140dBm/Hz |
| ● 1GHz～30GHz:-147dBm/Hz |
| ● 30GHz～40GHz:-143dBm/Hz |
| ✨Level accuracy: ±1dB |
| ✨Level resolution: 0.1dB |
| ✨Maximum input safe power: ±1dB |
| ● 26dBm (9kHz~4.4GHz/6.3GHz) |
| ● 25dBm (9kHz~7.5GHz/9GHz/20GHz/40GHz) |
| ✨IP3 |
| ● 100kHz～3GHz: ≥+10dBm |
| ● 3GHz～6.3GHz : ≥+12dBm |
| ✨HD2: <-75dBC |
| ✨Residual response: <-90dBm |
| ✨Reference levelrange: -130dBm～+30dBm |
| ✨SWR: <2.0 |
| ✨Real-time bandwidth: 100MHz |
| ✨Demodulation analysis : Demodulation analysis 5G NR、LTE、GSM、ector signal,audio analysis、ETC |
| ✨Demodulation Indicators |
| ● 5G NR: 1.2%@2.6GHz(PSS) |
| ● 5G NR: 1.3%@2.6GHz(SSS ) |
| ● 5G NR: 1.0%@2.6GHz(PBCH ) |
| ● LTE: 0.7%@1.8GHz(QPSK) |
| ● LTE: 0.7%@1.8GHz(QAM16) |
| ● Vector Signals: 0.8%@1.8GHz(1Msps QPSK) |
| ● Vector Signals: 0.8%@1.8GHz(Symbol Rate 1Msps 64QA |
| ✨Power supply: AC：100-240V/50-60Hz | DC：19V |
| ✨Operating: -10℃~50℃ |
| ✨Display: 10.1 inches HD TFT Color Touch Screen |
| ✨Dimensions/Weight: 31x20x6cm/12x8x2.4inch (2.5kg/5.5LB); Package: 42x35x20cm/16.5*14*8inch(4.1kg/9LB) |
| ✨HD2: <-75dBC |
| ✨HD2: <-75dBC |
Efficient interference troubleshooting
Advanced Interference Troubleshooting
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer is a highly efficient tool for interference troubleshooting, providing spectrum analysis under the corresponding bandwidth for TDD communication systems. It effectively separates upstream and downstream signals, ensuring accurate diagnostics of network performance. With a built-in operator template, the SS371 enables quick and user-friendly operation, making field testing more efficient. Additionally, the device supports ETC signal analysis (Optional), allowing for comprehensive road test measurements by evaluating ETC primitives, leading codes, frequency tolerance, and modulation coefficients. This makes the SS371 Spectrum Analyzer an ideal solution for precise signal monitoring and real-time interference detection in demanding field environments.
Comprehensive signal testing, modulation analysis, and audio demodulation capabilities.
Field Strength Testing
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer offers comprehensive field strength testing, including both single-point frequency and full channel field strength measurements, along with support for list scan measurements. It excels in modulation signal analysis, providing detailed insights into various modulation types through vector signal time domain maps, constellation maps, IQ information, and associated numerical parameters. The SS371 also supports audio demodulation analysis, making it ideal for space radio monitoring and other audio-related applications. Additionally, the device features multiple operation modes, including "daytime mode" and "dark mode," ensuring ease of use and clear observation of signals in diverse field conditions, making it a versatile tool for advanced signal testing and analysis in various environments.
SS371 FIELD TESTER / SPECTRUM ANALYZER FEATURES
| ✨Frequency Range from 9 kHz up to 40 GHz. |
| SS371A/SS371AT (9kHz~4.4GHz @ SS371AT with 100kHz~4Ghz Generator) |
| SS371B/SS371BT (9kHz~6.3GHz @ SS371BT with 100kHz~6.5GHz Generator) |
| SS371C/SS371CT (9kHz~7.5GHz @ SS371CT with 100kHz~7.5GHz Generator) |
| SS371D/SS371DT (9kHz~9GHz @ SS371CT with 100kHz~9GHz Generator) |
| SS371E(9kHz~20GHz) |
| SS371F(9kHz~40GHz) |
| ✨Interference analysis: waterfall map measurement, afterglow spectrum, signal direction finding, interference positioning, four-window interference investigation, TDD system interference investigation, etc. |
| ✨Base station analysis: 5G NR, LTE, GSM, etc. |
| ✨Signal analysis: AM/FM/PM/LSB/USB, ASK/FSK/MSK/PSK/QAM, etc. |
| ✨Road test coveragez: Indoor signal coverage, outdoor road test. |
| ✨Test analysis: Spectrum scanning, field intensity measurement, channel power, OBW, ACLR, 100MHz real-time spectrum, spectrum emission template, signal-to-noise ratio, harmonic distortion, phase noise, differential spectrum, zero sweep width, signal strength, channel scanning, audio demodulation, ETC analysis, etc. |
| ✨9kHz~4.4GHz / 6.3GHz / 7.5GHz / 9GHz / 20GHz / 40GHz frequency range. |
| ✨Spectrum sweep speed 133GHz/s (@25KHz), which can effectively capture the signal. |
| ✨5G NR/TDD-LTE/FDD-LTE/GSM and other base station signal demodulation analysis functions. |
| ✨100MHz real-time analysis bandwidth. |
| ✨Support TDD system upstream and downstream separation interference investigation test. |
| ✨10-inch FTF touchscreen, high resolution 1920×1200 pixels, with "daytime mode," "dark mode," and other modes of operation. |
| ✨Support directional antenna with electronic compass for signal direction finding, support multi-point positioning function. |
| ✨Support wireless communication road test, with GPS can achieve automatic positioning road test function. |
| ✨ Small size, lightweight (≤2.5kg), flexible power supply (single battery working time ≥3 hours), easy to maneuver, a variety of carrying methods, support remote control. |

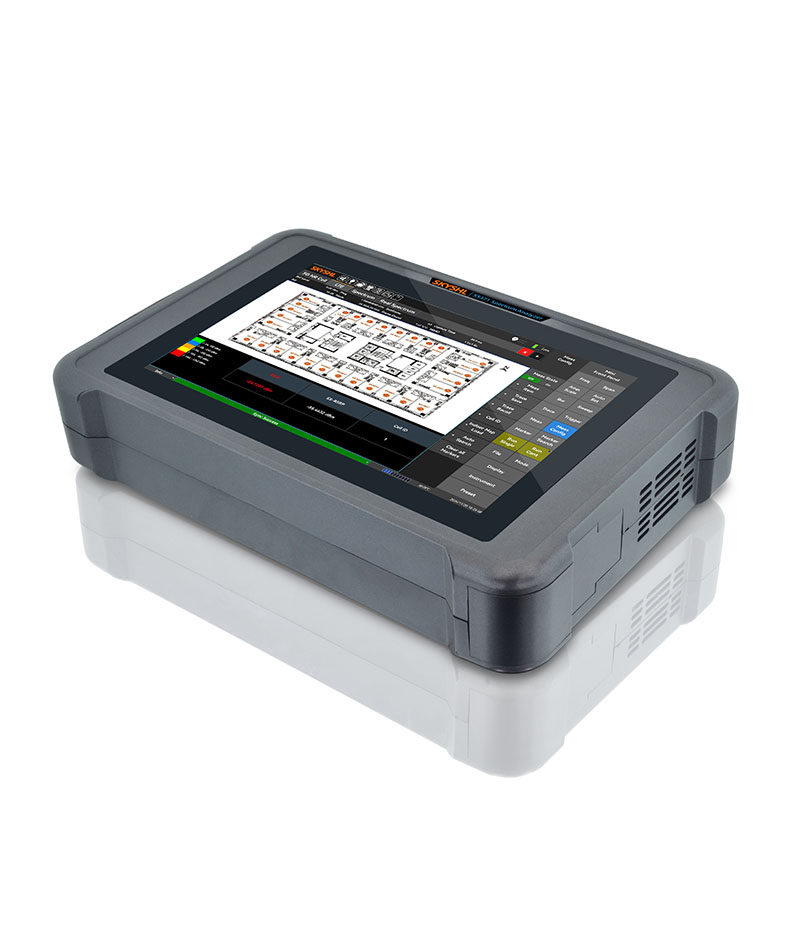

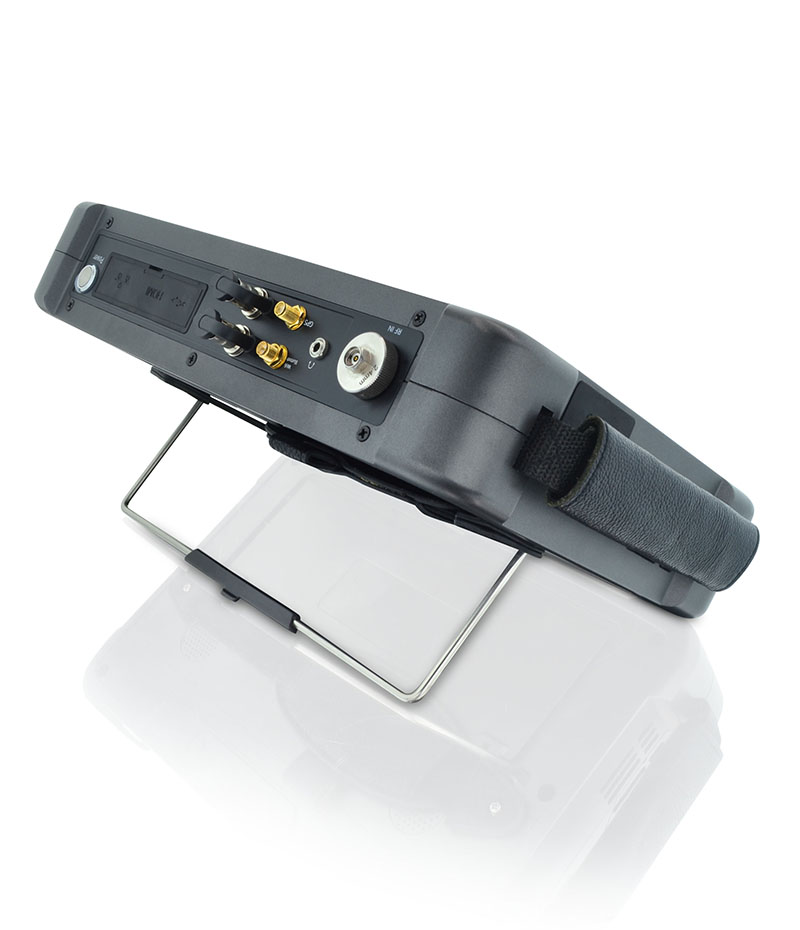

Lightweight, Small, Easy Control
Convenient Field Test
The SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer is designed for portability, weighing just 2.5kg and offering various convenient carrying methods for easy maneuverability. It supports remote collaborative processing, enabling seamless teamwork in field environments. The device also features user-friendly controls, including screen capture, screen recording, configuration template saving and recall, and IQ data saving, making it a versatile and efficient tool for both on-site and remote testing, ensuring comprehensive control and flexibility for signal analysis tasks.
SS371 External Field Communication Tester / Spectrum Analyzer
| Model | Frequency Range | Tracking Generator |
|---|---|---|
| SS371A | 9kHz ~ 4.4GHz | No |
| SS371AT | 9kHz ~ 4.4GHz | 100kHz ~ 4GHz |
| SS371B | 9kHz ~ 6.3GHz | No |
| SS371BT | 9kHz ~ 6.3GHz | 100kHz ~ 6.5GHz |
| SS371C | 9kHz ~ 7.5GHz | No |
| Model | Frequency Range | Tracking Generator |
|---|---|---|
| SS371CT | 9kHz ~ 7.5GHz | 100kHz ~ 7.5GHz |
| SS371D | 9kHz ~ 9GHz | No |
| SS371DT | 9kHz ~ 9GHz | 100kHz ~9GHz |
| SS371E | 9kHz ~ 20GHz | No |
| SS371F | 9kHz ~ 40GHz | No |
SS371 Optional Accessories
| Model | Description | Remark |
|---|---|---|
| SS371-S01 | ETC | / |
| SS371-H01 | Handheld amplifier | / |
| SS371-A01 | 9kHz~30MHz | Directional Antenna |
| SS371-A02 | 20MHz~200MHz | Directional Antenna |
| SS371-A03 | 200MHz~500MHz | Directional Antenna |
| SS371-A04 | 500MHz~8GHz | Directional Antenna |
| SS371-A05 | 500MHz~20GHz | Directional Antenna |
| Note: The directional antenna must be used with the handheld amplifier SS371-H01, which is configured according to the trial frequency band and includes an antenna amplifier handle with a noise floor and an electronic compass. | ||
| SS371-A06 | 700MHz~2.7GHz | Omnidirectional Antenna |
| SS371-A07 | 300MHz~8GHz | Omnidirectional Antenna |
| Model | Description | Remark |
|---|---|---|
| SS371-A08 | 680MHz~6GHz | Omnidirectional Antenna |
| Note: Omnidirectional antennas do not require a handheld amplifier. | ||
| SS371-A11 | 400MHz～6GHz | Log-periodic Antenna |
| SS371-A12 | 700MHz～6GHz | Log-periodic Antenna |
| SS371-A13 | 380MHz～10GHz | Log-periodic Antenna |
| SS371-A14 | 400MHz～4GHz | Log-periodic Antenna |
| SS371-A15 | 700MHz～4GHz | Log-periodic Antenna |
| SS371-A16 | 700MHz～10GHz | Log-periodic Antenna |
| Note: Log-periodic Antenna do not require a handheld amplifier. | ||

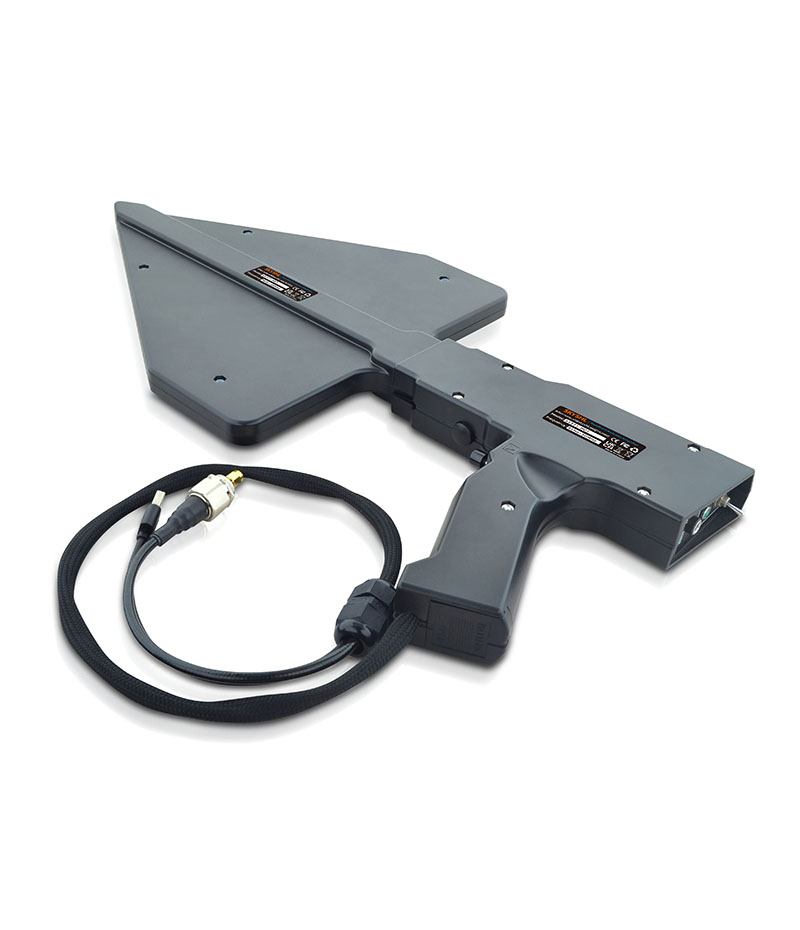

| SS371-A17 | 6GHz～26.5GHz | Handheld High gain direction finder antenna |
| SS371-A18 | / | WIFI antenna |

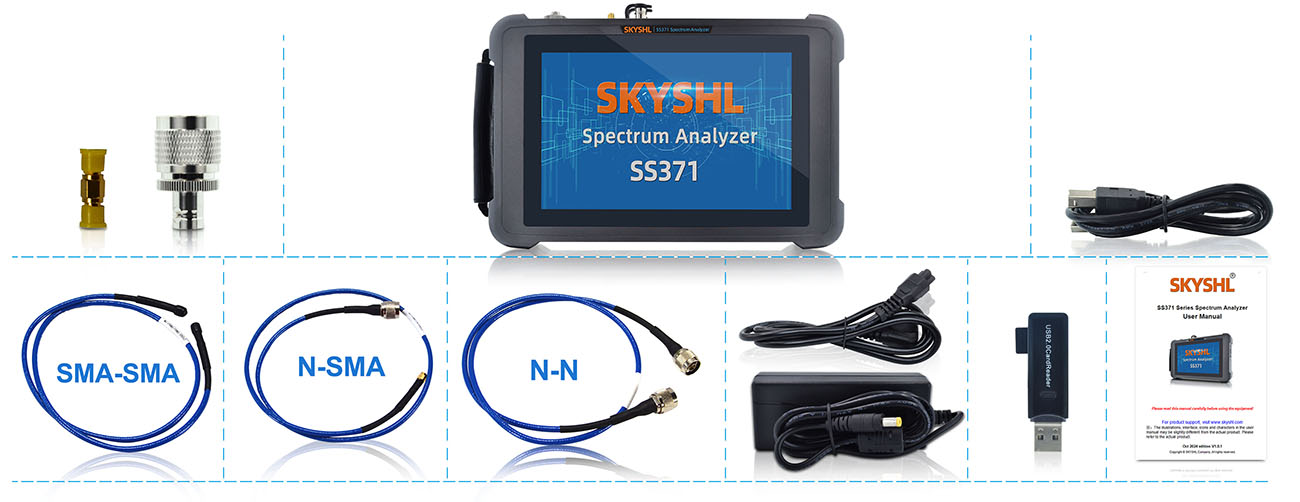

SS371A/AT/B/BT/C/CT/D/DT/E/F Package
Why we developed SS411F fusion splicer
The Development Story of SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer
The development of the SKYSHL SS371 External Field Communication Tester / Spectrum Analyzer was driven by the growing need for a lightweight, versatile, and high-performance field testing device. As communication networks continue to evolve, engineers and technicians face increasing challenges in identifying and troubleshooting interference in complex environments. SKYSHL's R&D team set out to create a cutting-edge solution that would simplify field testing while maintaining precision and efficiency.
One of the primary goals in designing the SS371 was to enhance interference troubleshooting capabilities. The team integrated advanced spectrum analysis technology to effectively isolate upstream and downstream signals in TDD communication systems. By incorporating a built-in operator template, they ensured that users could perform quick and intuitive analyses, reducing the time required for complex troubleshooting.
Portability was another key focus. The R&D team engineered the SS371 to be compact and lightweight (≤2.5kg), allowing for effortless maneuverability. With multiple carrying options and support for remote collaborative processing, the device became an ideal companion for field engineers.
To address the growing demand for multi-functional testing, the SS371 was equipped with advanced modulation signal analysis, field strength testing, and audio demodulation capabilities. Features such as constellation mapping, IQ data analysis, and space radio monitoring expanded the device’s versatility, making it suitable for various signal environments.
In addition, the SS371 supports essential tools like screen capture, recording, and configuration template saving, ensuring seamless data management. The inclusion of “daytime mode” and “dark mode” further optimized usability in different lighting conditions.
Through relentless innovation, SKYSHL successfully developed the SS371—a powerful and efficient solution that revolutionizes external field communication testing and spectrum analysis, empowering engineers to perform high-precision diagnostics with ease.
Learn more our company
Learn more our product
SS371 Questions and Answers
More FAQ
PRODUCT FAQ
SS371AT (SS371BT / SS371CT / SS370DT) with tracking generator, SS370A (SS370B / SS370C / SS370D / SS370E / SS370F) without tracking generator.
The SS371 is a multifunctional device designed for interference troubleshooting, spectrum analysis, field strength testing, modulation signal analysis, and audio demodulation. It effectively isolates upstream and downstream signals in TDD communication systems, supports ETC signal road testing, and provides real-time spectrum monitoring for various applications.

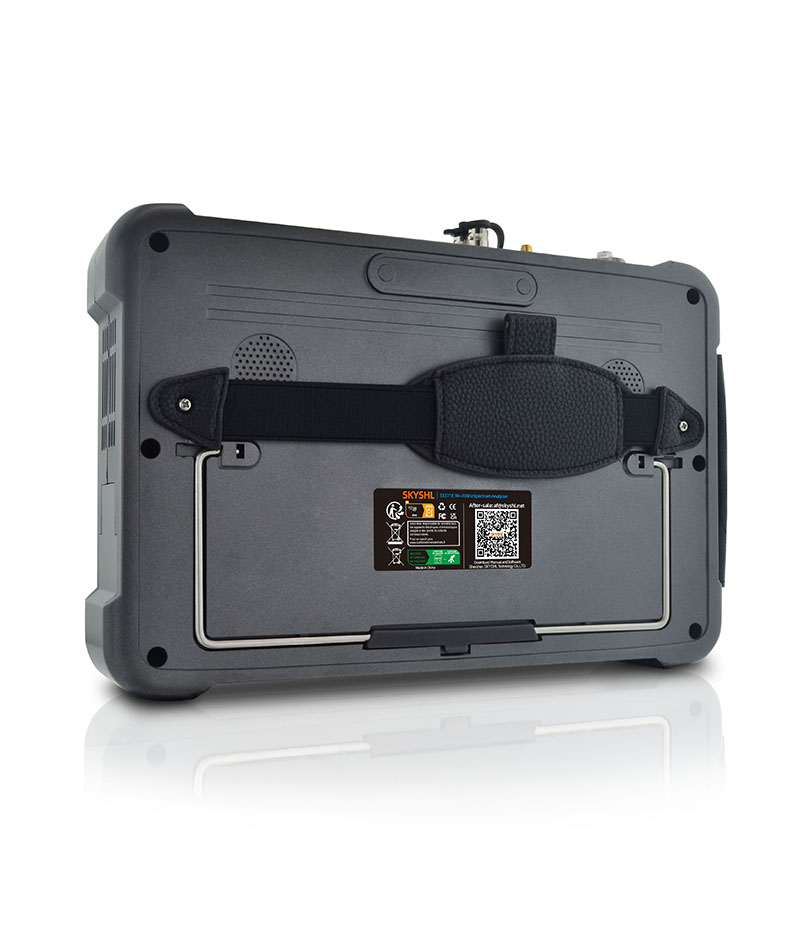

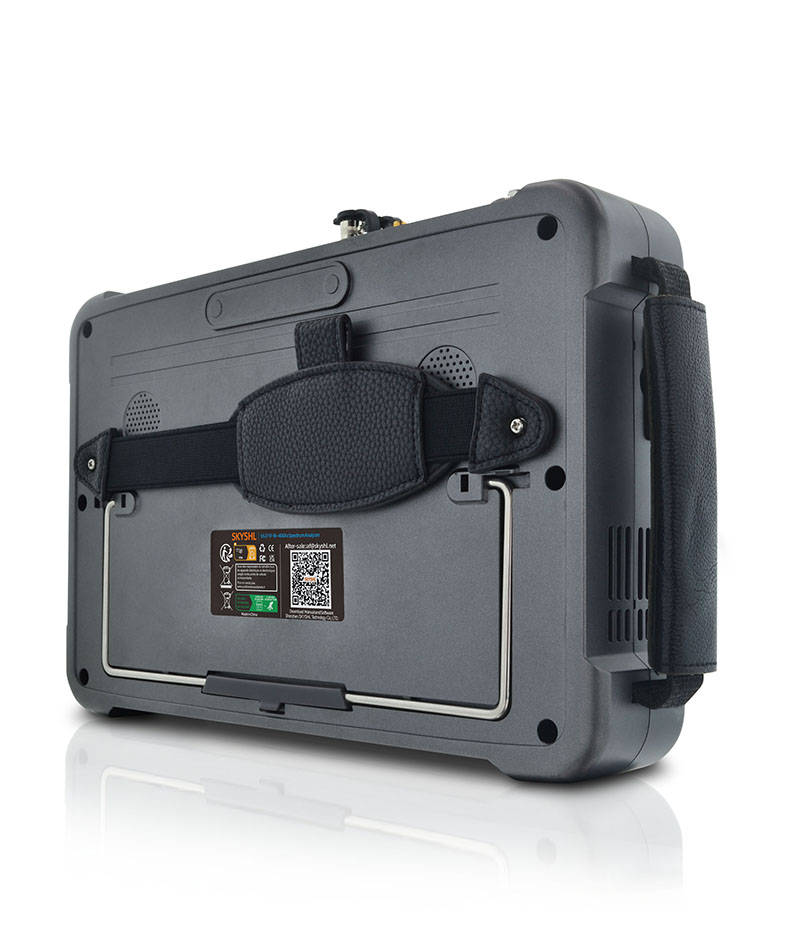

The SS371 is designed with portability in mind. It weighs only ≤2.5kg and features a compact design with multiple carrying options, making it easy to transport. It also supports remote collaborative processing, allowing engineers to conduct efficient field tests in various environments.
Yes, the SS371 supports advanced modulation signal analysis, including vector signal time domain maps, constellation maps, IQ data analysis, and other key numerical parameters. This makes it an ideal tool for evaluating and troubleshooting different modulation formats.
The SS371 features both "daytime mode" and "dark mode" to ensure clear visibility in different lighting conditions. Additionally, it supports screen capture, screen recording, configuration template saving, and IQ data saving, making it convenient for data analysis and reporting.
The SS371 provides advanced spectrum analysis under specific bandwidths for TDD communication systems, effectively separating upstream and downstream signals. It also includes a built-in operator template for quick and intuitive operation, helping engineers quickly identify and resolve interference issues in complex environments.
Any use of the problem buyers can contact us (click the orange circle in the lower left corner or Click here to contact us), our professional engineers will answer your questions by email, operating instructions, remote video conferencing.
PURCHASE FAQ
We all can provide commercial invoice.
We support Paypal,credit card,TT(payment method for quantity more than 10 units) and other payment methods.
The product page will show the shipping country and stock quantity, buyers choose the shipping place as China when purchasing, it will be shipped from China factory, except for the shipment outside of China for the local warehouse shipment (please choose the buyer's country as the shipment place, when the receiving country and the shipping country are not the same, it will be used in the cross-border mode to be shipped from the factory in China).
No reason to return within 90 days, free replacement within 1 year, free repair within 3 years, lifetime limited warranty.
🔹🔹🔹Product Catalog🔹🔹🔹
Reviews
Clear filtersOnly logged in customers who have purchased this product may leave a review.
About Shipping
We seamlessly manage the entire production, sales, and delivery process digitally, which improves the overall production efficiency and strictly controls the quality of the products, and at the same time, the localized deployment of local warehouses enables quick handover of goods.
Our shipment is divided into 2 modes, local warehouse mode and cross-border mode, the product page will show the stock quantity according to the country, if it shows that your country's stock is available, then be sure to select your own country of receipt, we will ship to the buyer through the local warehouse, if your country is out of stock or does not show your country's country name, then please select China, we will ship to you through the cross-border shipment mode from the factory in China. (Learn more)
SHIPPING INFORMATION
Local warehouse mode: take advantage of local warehouse storage, goods are shipped to buyers from local warehouses.
Cross-border mode: goods are shipped to buyers from Chinese factories. (Learn more)
Local Warehouse Mode: We ship from customer's local warehouse, usually delivery is completed within 2-7 days.
Cross-border mode: If the customer chooses the warehouse in China when purchasing goods, then we will first search for the customer's local inventory, if there is, then we will ship the goods from the local overseas warehouse, the delivery time is 2-7 days, if there is no inventory, then we will ship the goods from China, the time is about 7-15 days.
Local Warehouse Mode: We will send the goods from customer's local warehouse, customer only wait for the delivery to the door.
Cross-border mode: we will send the goods from China to the buyer, and the buyer needs to clear the customs in their own country and complete the payment of customs duty. Some countries have duty free delivery service, usually we will inform you by email.
Local warehouse mode: according to the local warehouse courier company.
Cross-border mode: Usually use UPS, DHL, Fedex, China Post, special transportation and other courier companies, if the customer has special requirements, you can contact us, inform the order number and the name of the courier company.
Regardless of which courier company to ship, we will first use the optimal shipping channel, and fast, safe, on-time delivery of goods to customers.
TechWizard42 –
Just got the SS371E for field testing. The 20GHz range is impressive and the touch screen is very responsive. No issues so far!
RadioRon –
Using this for satellite signal analysis. The phase noise specs are accurate and the 3D waterfall map is super helpful. Worth the price!
SignalHunter –
Does the SS371F come with a carrying case? Need something durable for outdoor use.
WaveWatcher –
The real-time bandwidth is great, but I wish the battery life was longer. Had to plug in frequently during all-day testing.
GadgetGuru –
Customer service was amazing! Had a question about the demodulation analysis and they responded within an hour with detailed instructions. 👍
SpectrumSam –
Been using the SS371C for base station testing. The accuracy is spot on and the size is perfect for fieldwork. Only complaint is the weight – a bit heavy after carrying all day.
